Highlights
- Updated TFS aluminium frame with clearance for 2.4" tyres
- Trail ready geometry for confident off-road handling
- 120mm X-Fusion Migo 32mm stanchion air fork with lockout
- Shimano MT200 hydraulic disc brakes
- Shimano 1 x 9 drivetrain
- 27.5" wheels with Shimano hubs and Kenda tyres
- Size tuned Merida finishing kit

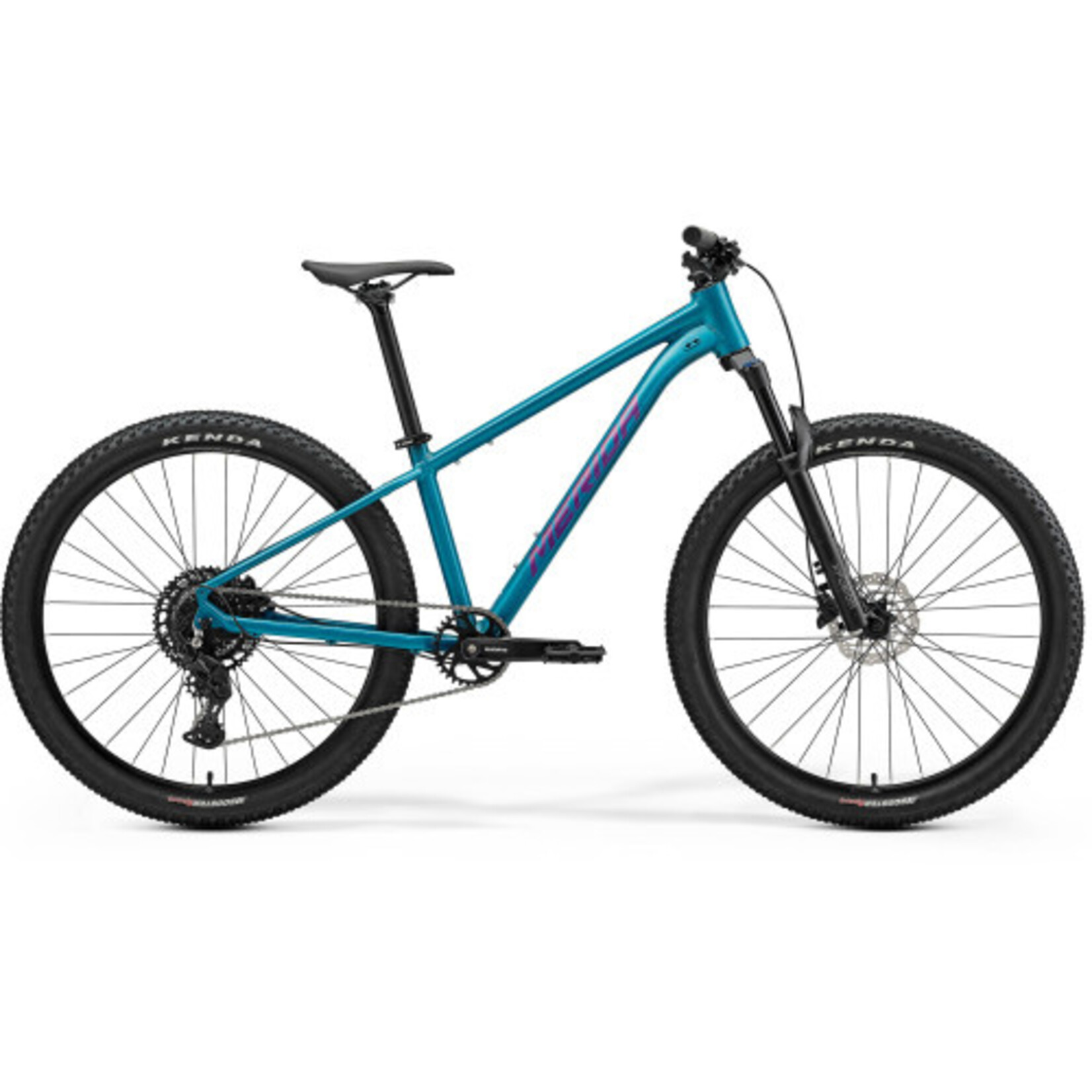

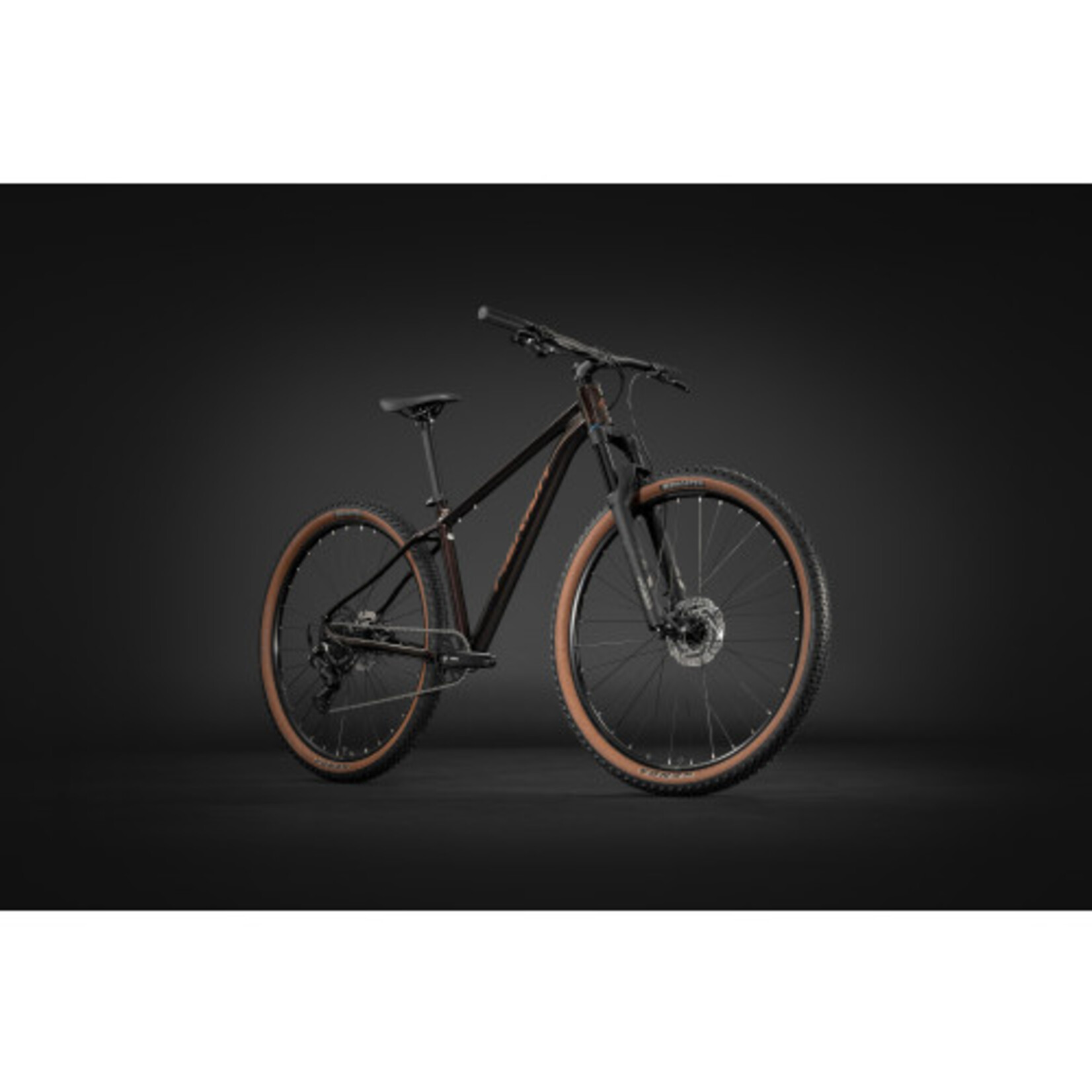

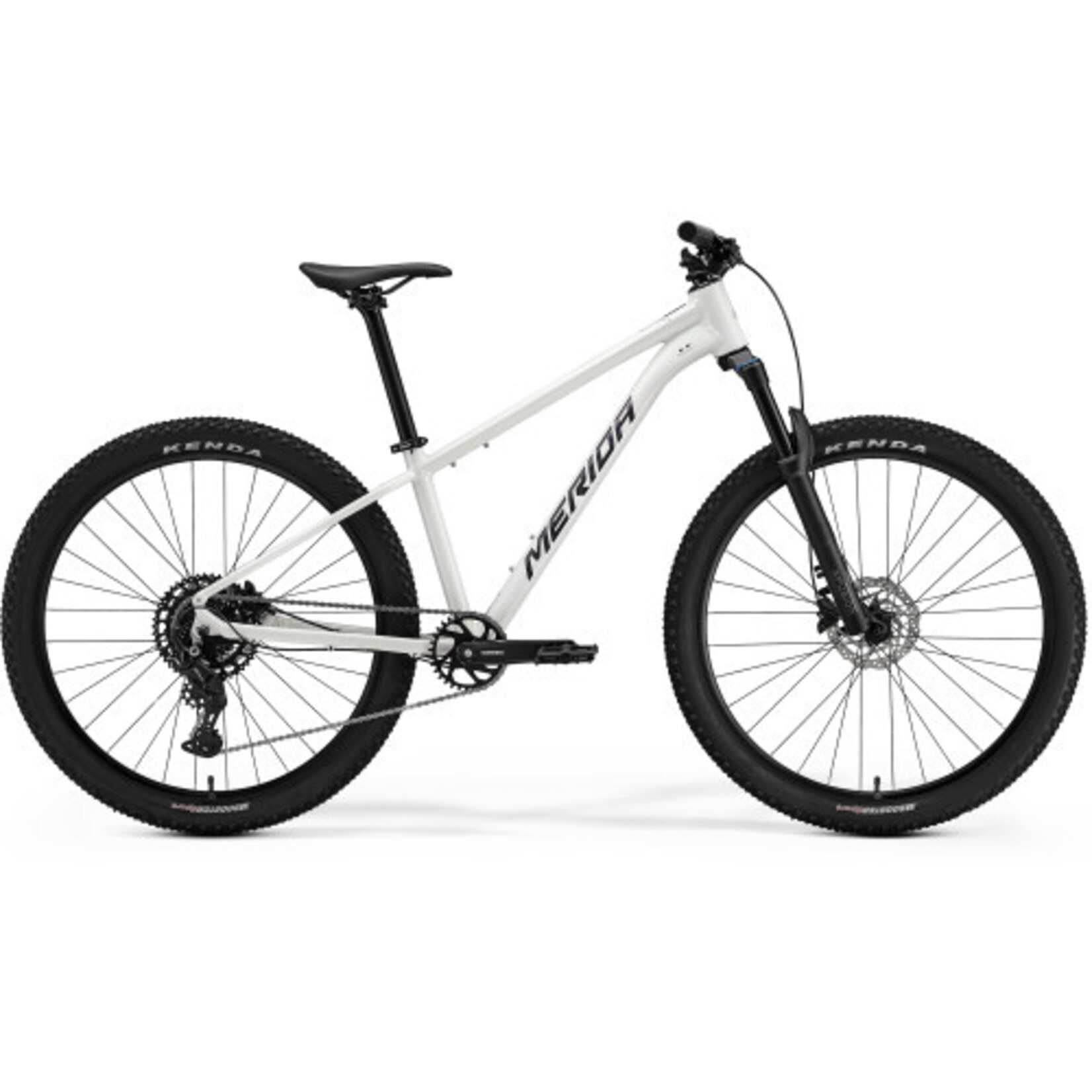

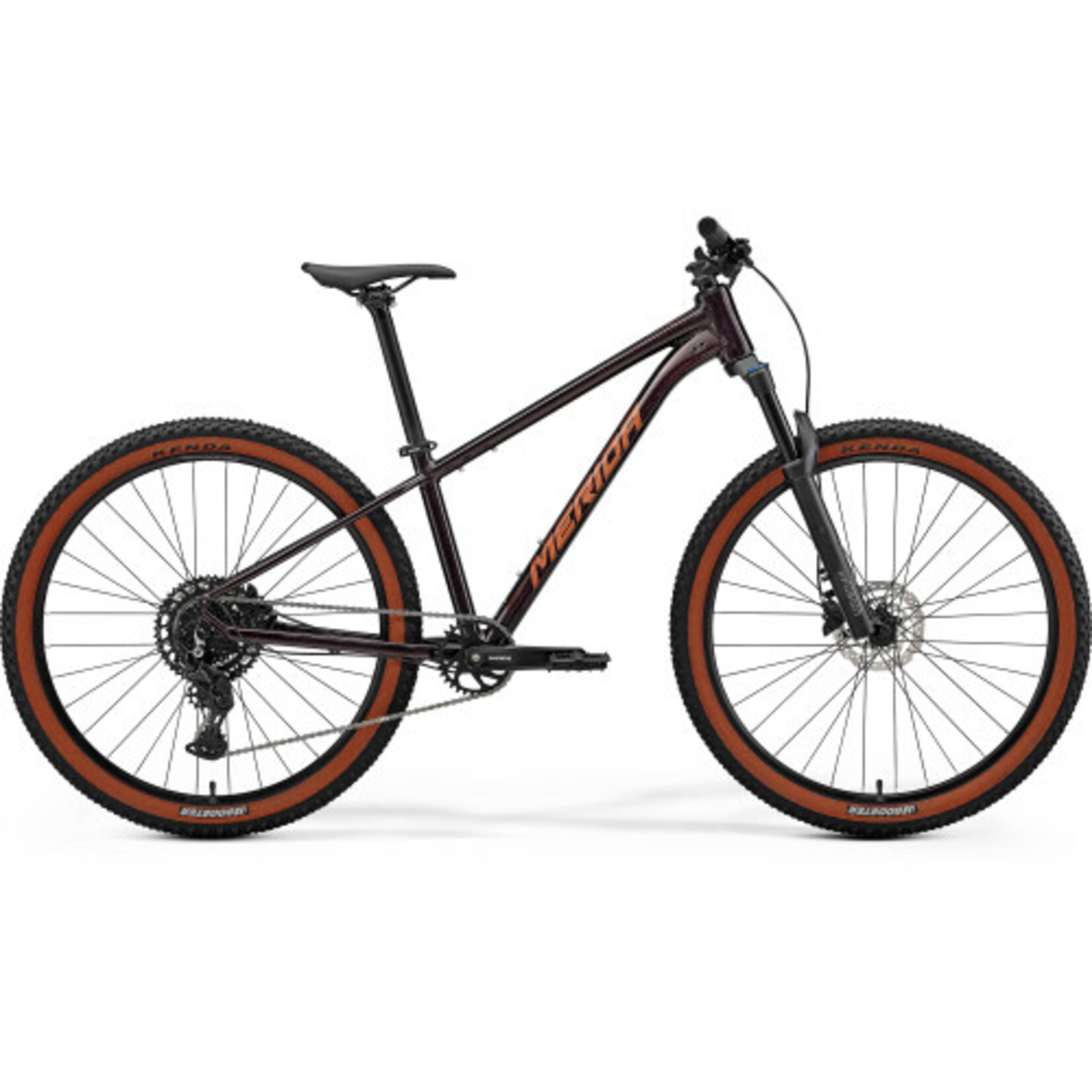

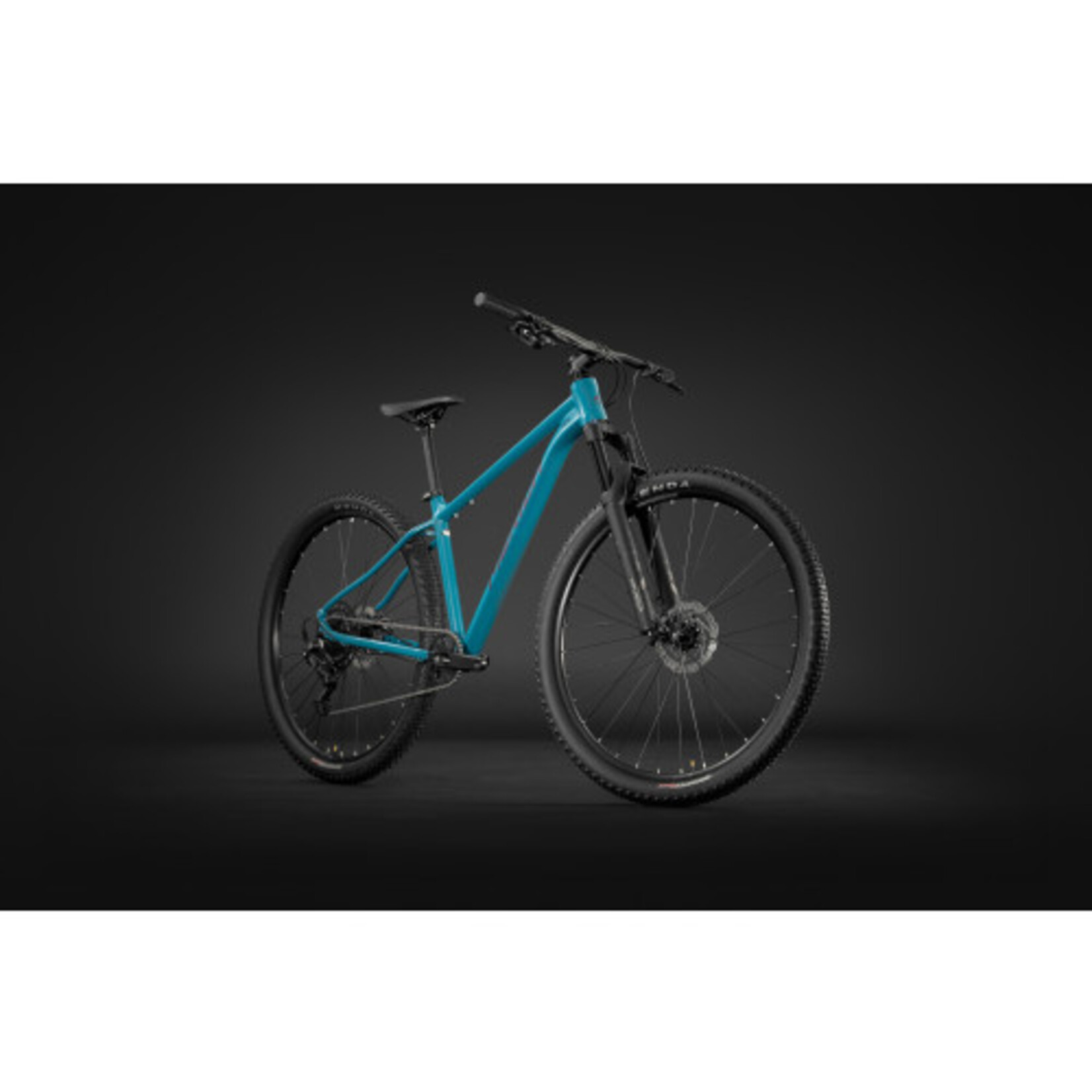

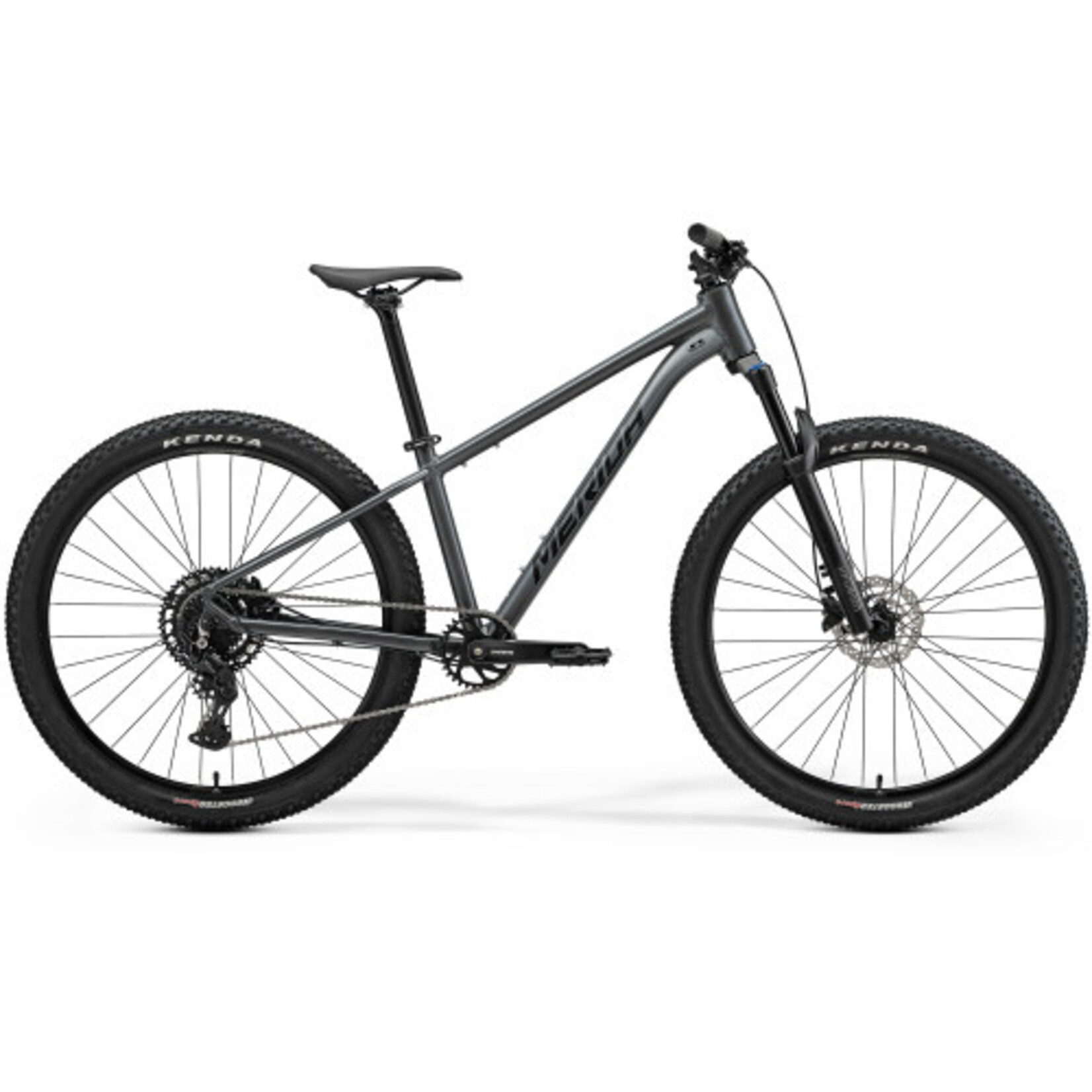

The start to the "proper" mountain biking journey: 650b aluminium hardtail with trail ready geometry, 120mm air fork with lockout, Shimano 1 x 9 drivetrain and hydraulic disc brakes.
Frame

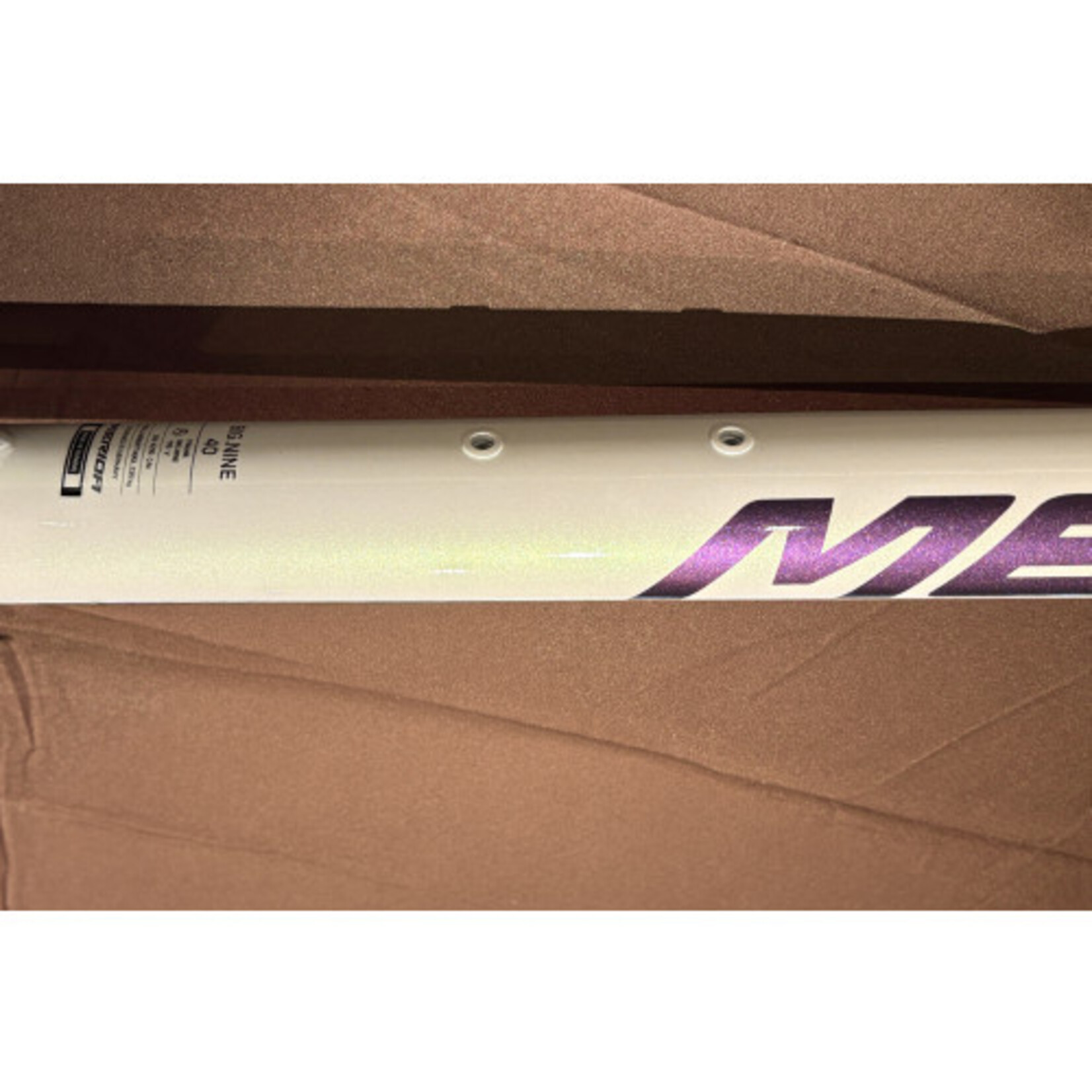

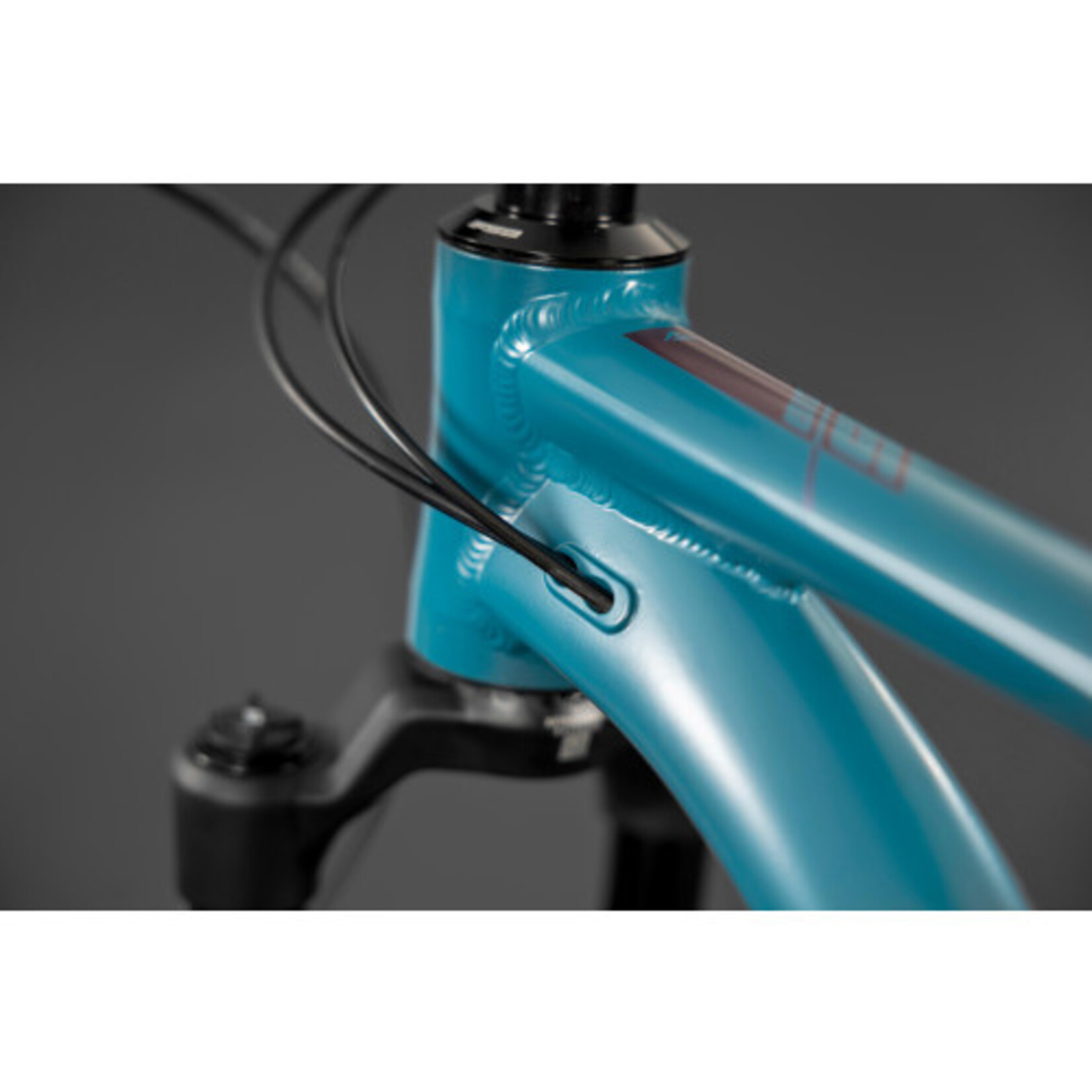

- TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4"
Fork
- X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 27.5x2.4" max. tyre size
Chainset
- Shimano Cues UT400-1; 32 tooth chainset; material: aluminium ; Crank length: 165mm
Cassette
- SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Front Brake
- Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake
- Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Handlebar

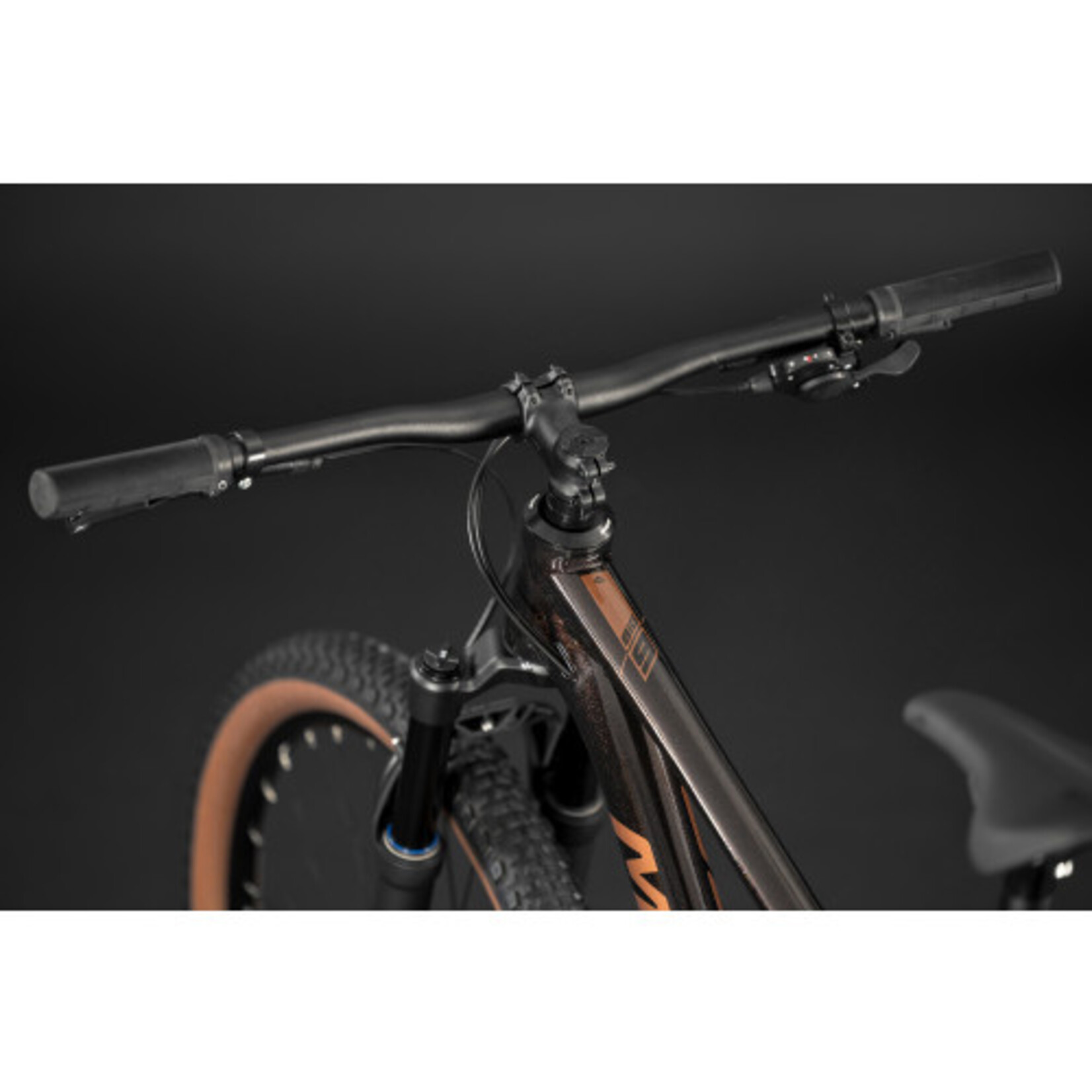

- Merida CC; material: aluminium; 15mm rise; (XXS-XS) - 700mm wide, S - 720mm wide
Stem
- Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Seat Post
- Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
Rims
- Merida Comp CC; 20mm inner rim width; material: aluminium
Front Hub
- Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub
- Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Front Tyre
- Kenda Booster; 27.5x2.4" 2nd color option: Booster 27.5x2.4 tanwall
Rear Tyre
- Kenda Booster; 27.5x2.4" 2nd color option: Booster 27.5x2.4 tanwall
