Highlights:
- Lightweight double butted aluminium frame
- Lightweight 120 mm air-sprung suspension fork
- Fast rolling 26” wheels
- Shimano wide-range drivetrain
- Hydraulic disc brakes
- Child specific finishing kit including dropper post

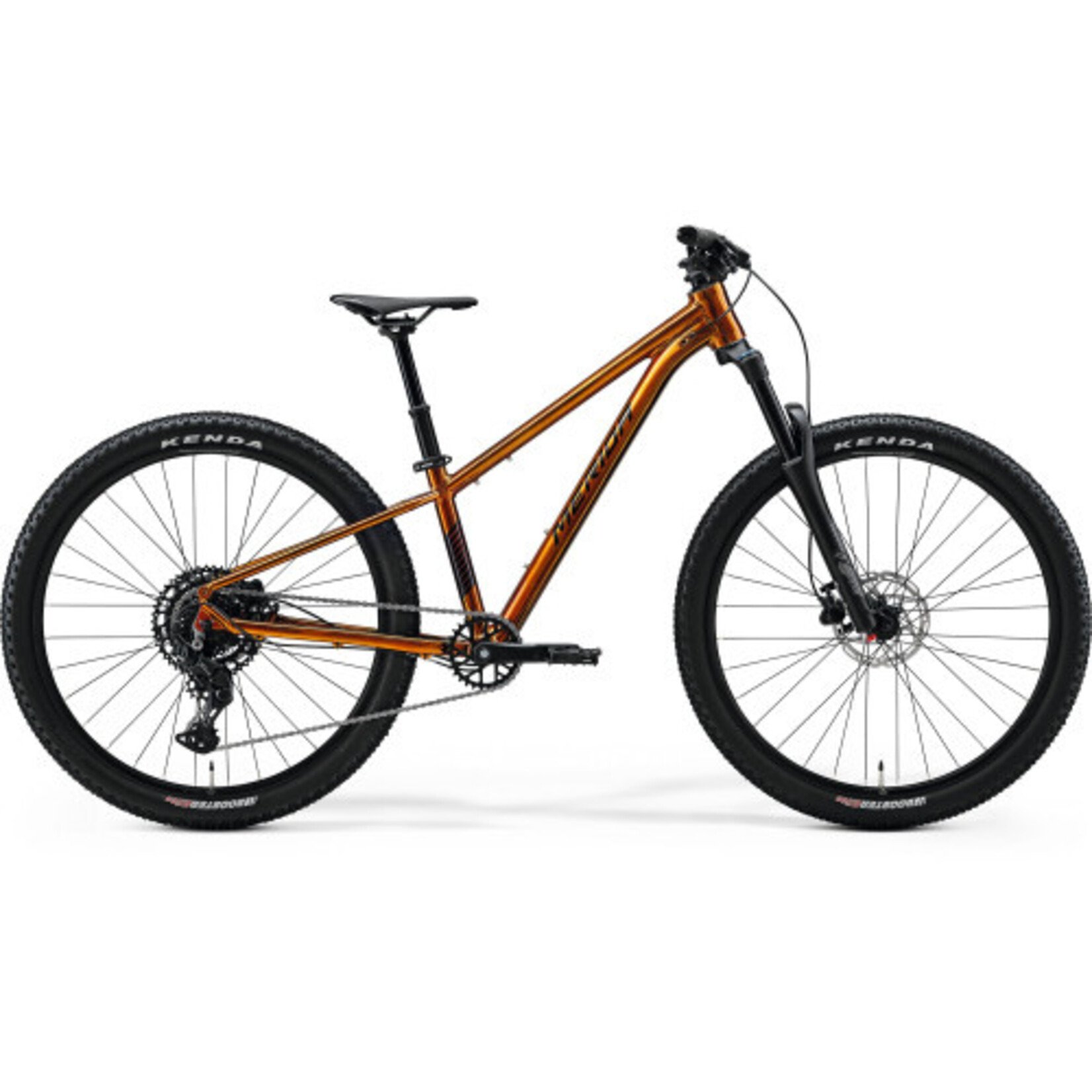

A bike to grow up with. Equipped with 26" wheels, but with potential to run 27.5" wheels as the rider grows. Air fork, Shimano 1 x 9 drivetrain, hydraulic disc brakes and a dropper post.
Frame
- TFS - 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing, BSA BB standard. Max tyre size 27" x 2.25"
Fork
- X-Fusion RC32 120mm; 120 mm travel; Lockout; 46mm fork offset; 27.5x2.4" max. tyre size
Shifters
- Front: Limotec RM06, Rear: Shimano Cues U4050; short reach
Chainset
- Prowheel A10B; 30 tooth chainset; material: aluminium; Crank length: 140mm
Cassette
- SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Front Brake
- Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-35; 160mm
Rear Brake
- Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-35; 160mm
Handlebar
- Merida CC; material: aluminium; 640mm wide; 15mm rise
Stem
- Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Seat Post
- Merida Comp JR; 30.9mm diameter; 100mm diameter; in-line; material: aluminium
Rims
- Merida CC; 17mm inner rim width; material: aluminium
Front Hub
- Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub
- Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Front Tyre
- Kenda Booster K1227; 26x2.2"; foldable
Rear Tyre
- Kenda Booster K1227; 26x2.2"; foldable
