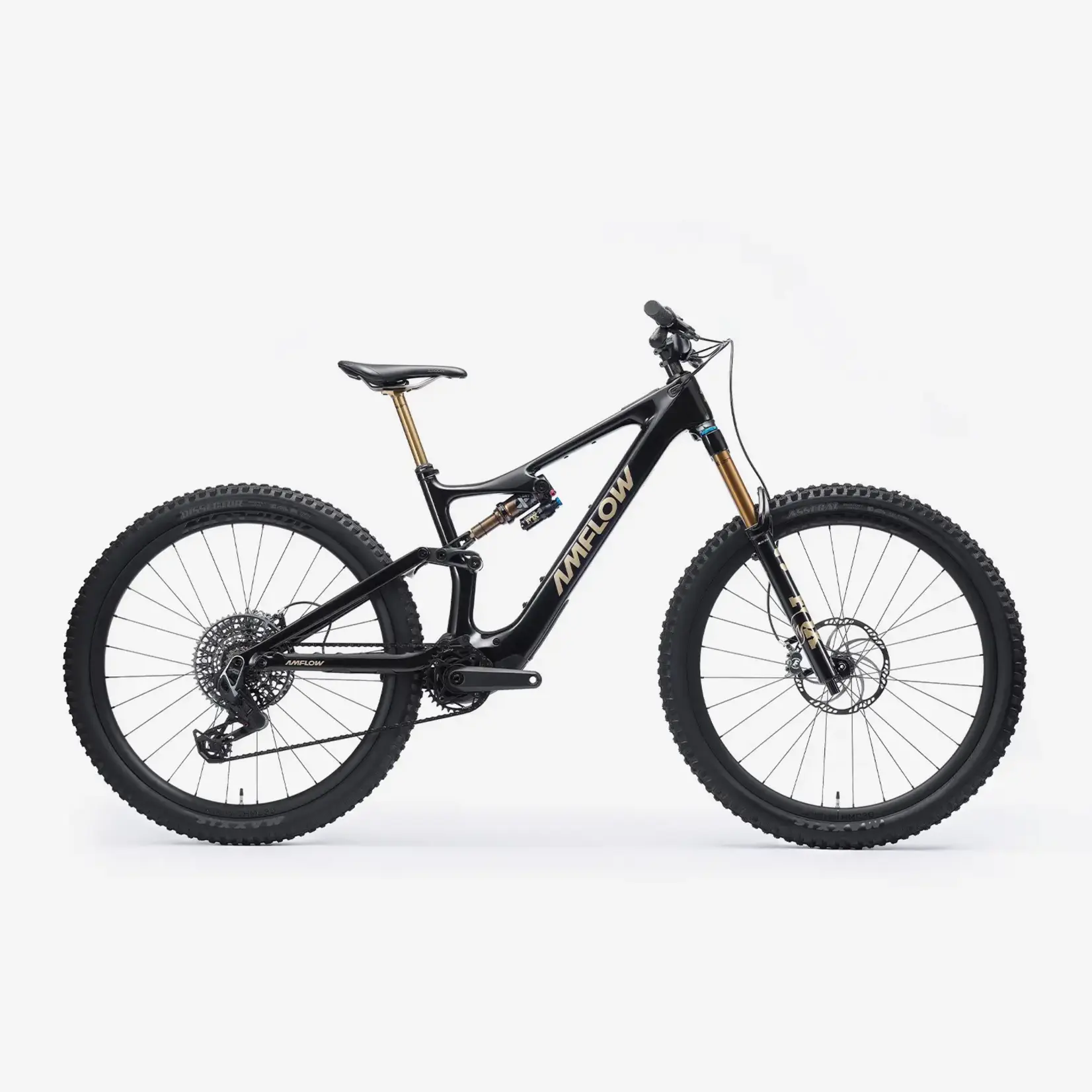

A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride.
In addition to traditional assistance modes of Eco, Trail and Turbo, the Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. [3] Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes.
For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque and 1000 W high-power assistance. [4]

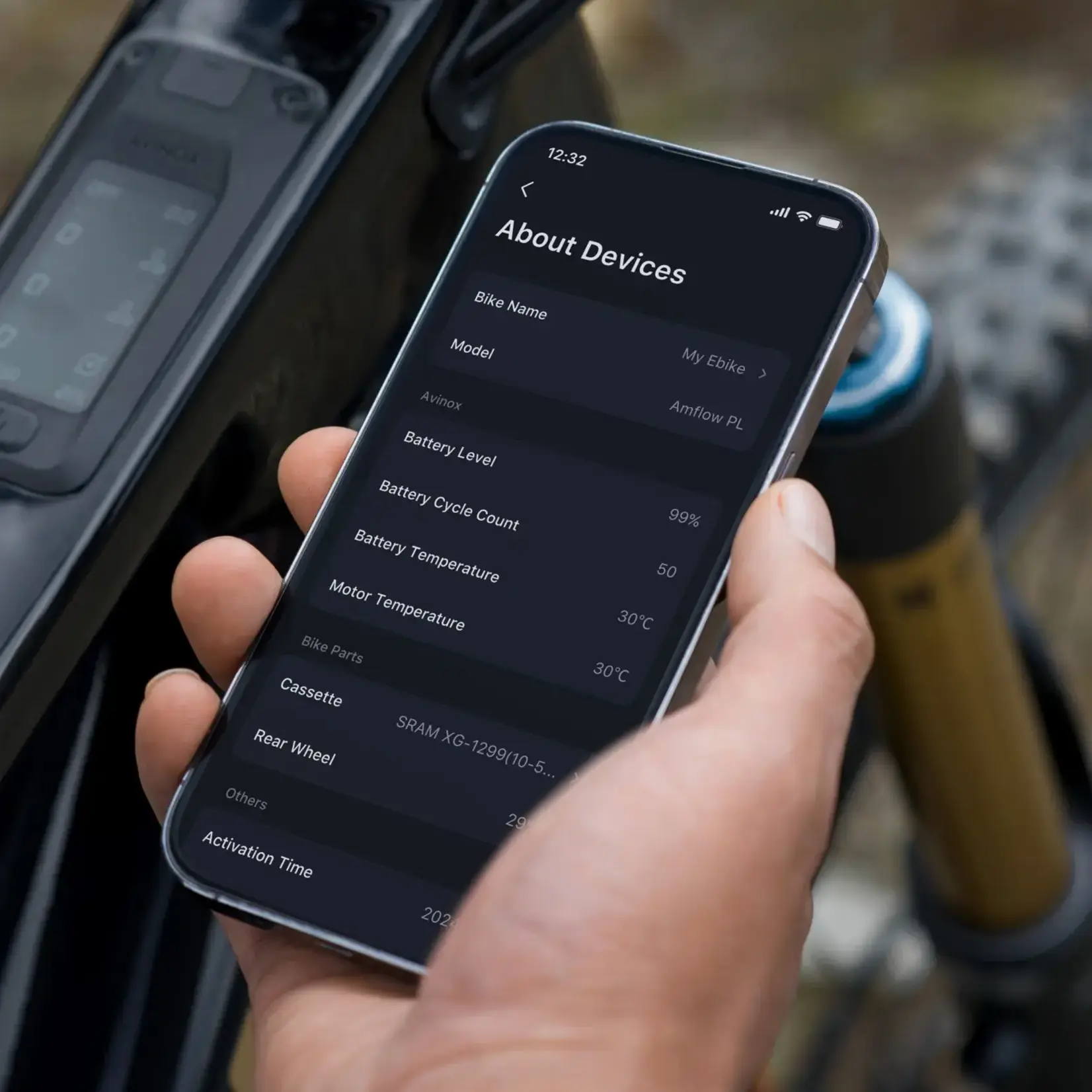

Amflow PL features a battery health management system for real-time monitoring, self-discharge, active voltage reduction, and abnormality alerts. Batteries are durable and reliable. After 500 full charge-discharge cycles, the battery still maintains 80% of its initial capacity. [6
| A | Reach | 452mm | 475mm | 500mm | 525mm |
|---|---|---|---|---|---|
| B | Stack Height | 618mm | 628mm | 641mm | 655mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 782mm | 810mm | 844mm | 873mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1227mm | 1255mm | 1289mm | 1318mm |
| G | Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| H | Bottom Bracket Drop | 29mm | 29mm | 29mm | 29mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube Length | 595mm | 620mm | 648mm | 676mm |
| K | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L | Head Tube Length | 105mm | 115mm | 130mm | 145mm |
| M | Actual Seat Tube Angle | 70° | 70° | 70° | 70° |
| N | Effective Seat Tube Angle | 77° | 77° | 77° | 77° |
| O | Seat Tube Height | 430mm | 450mm | 470mm | 500mm |
