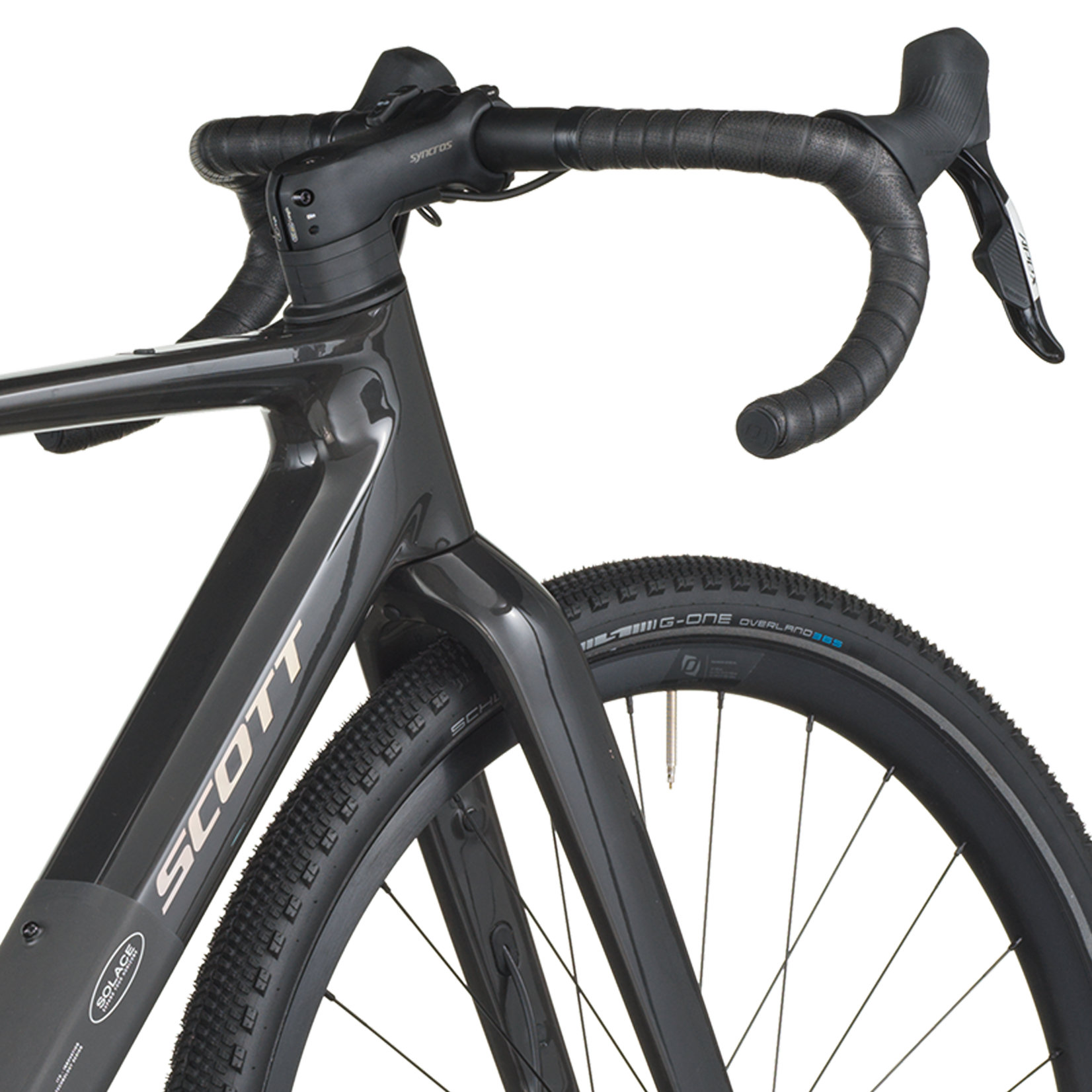

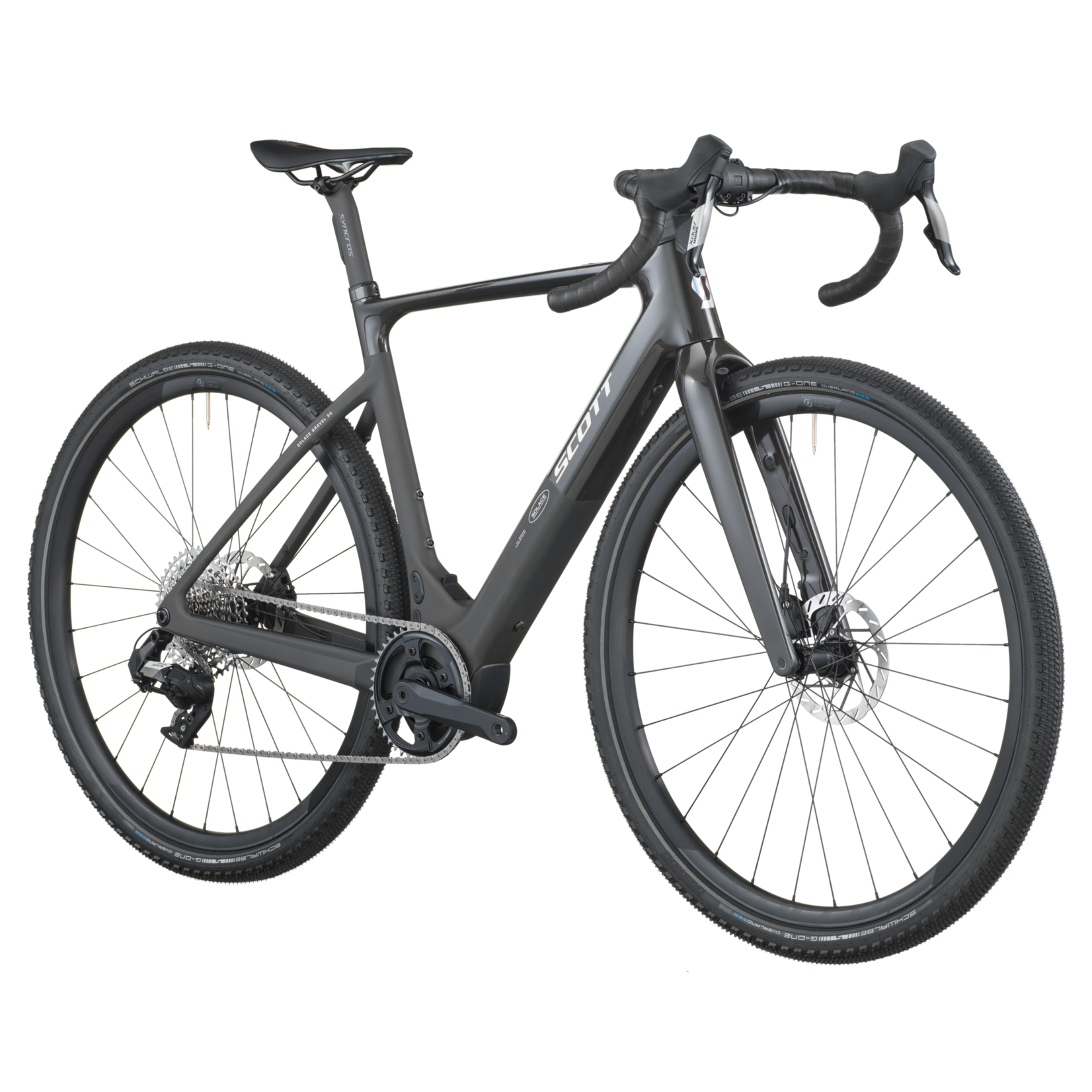

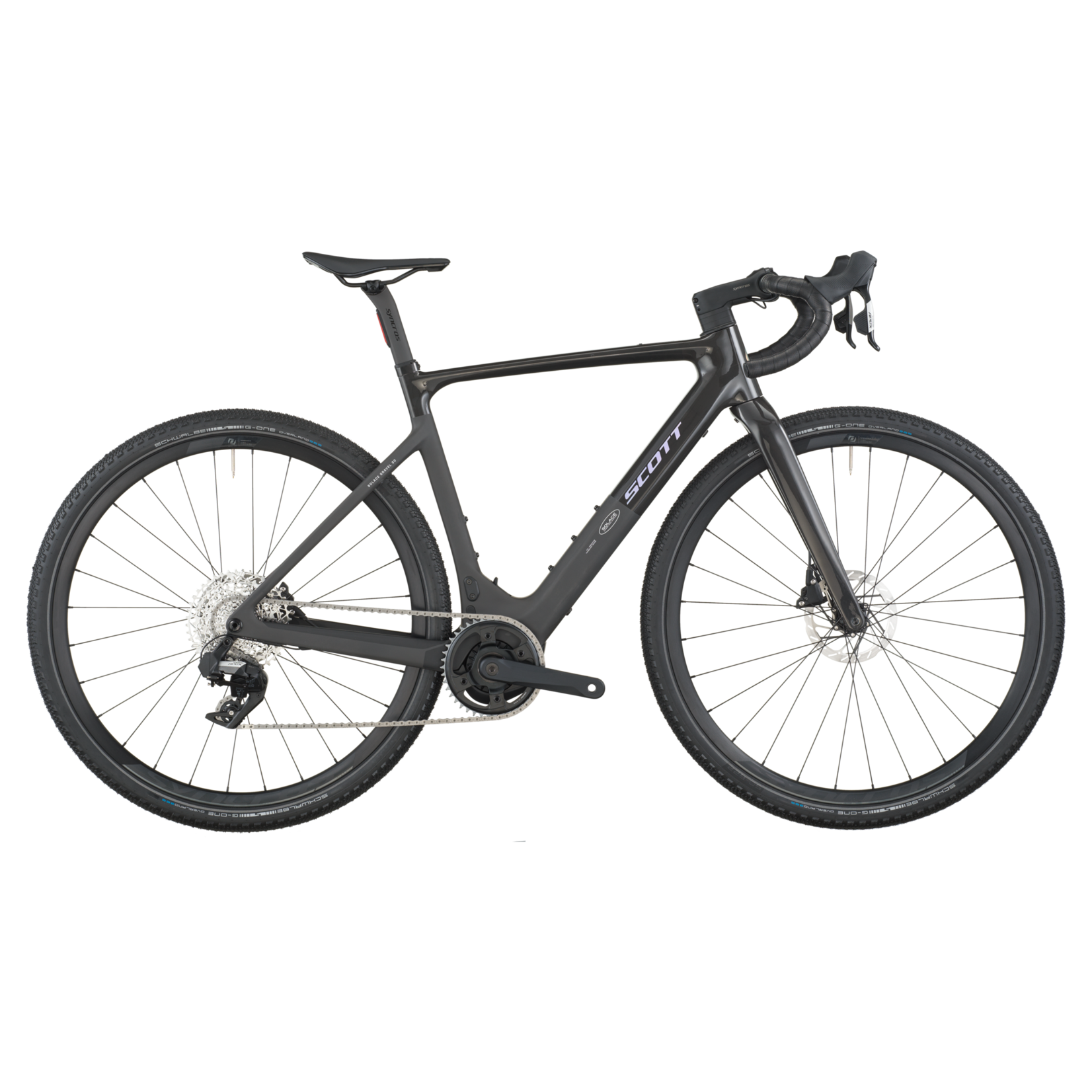

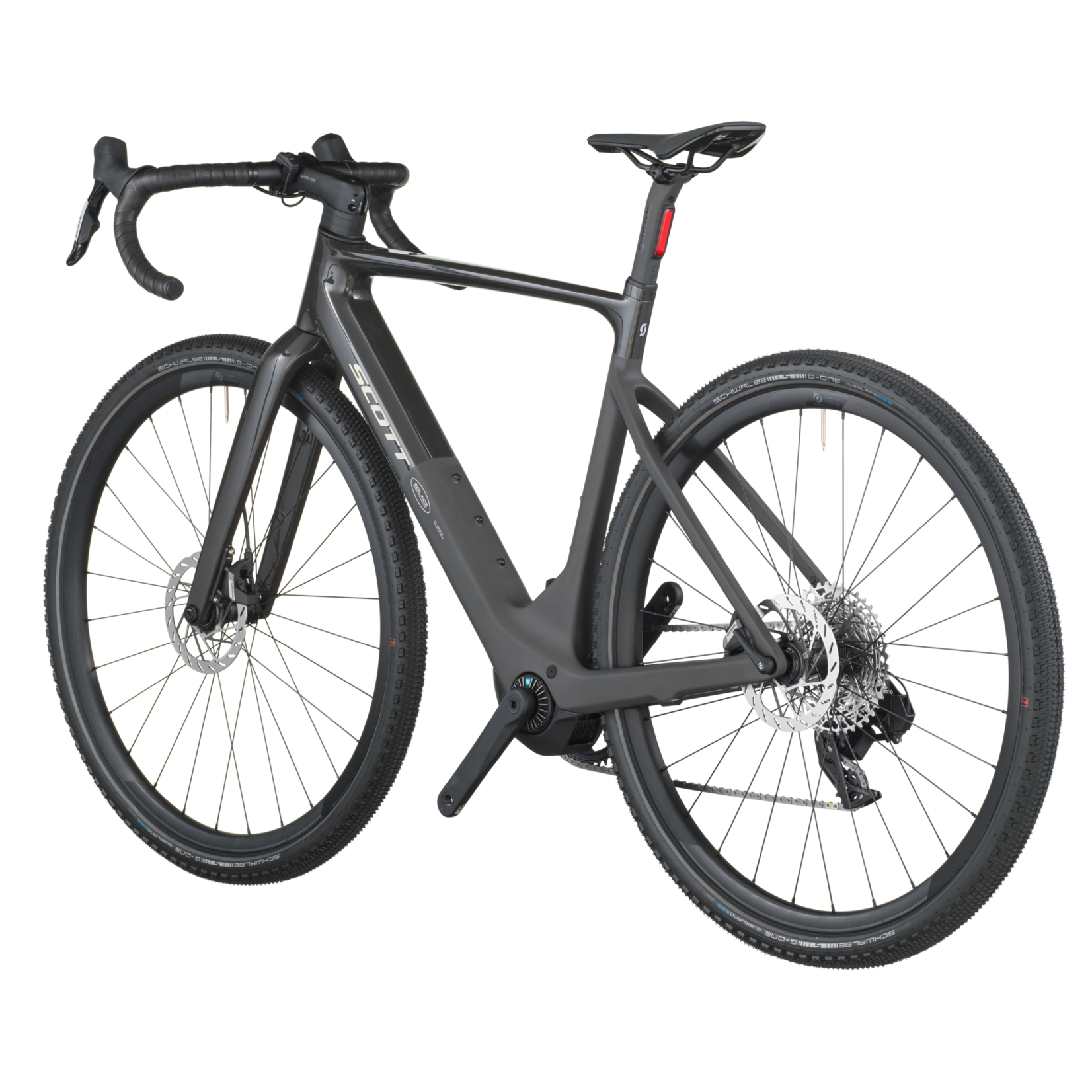

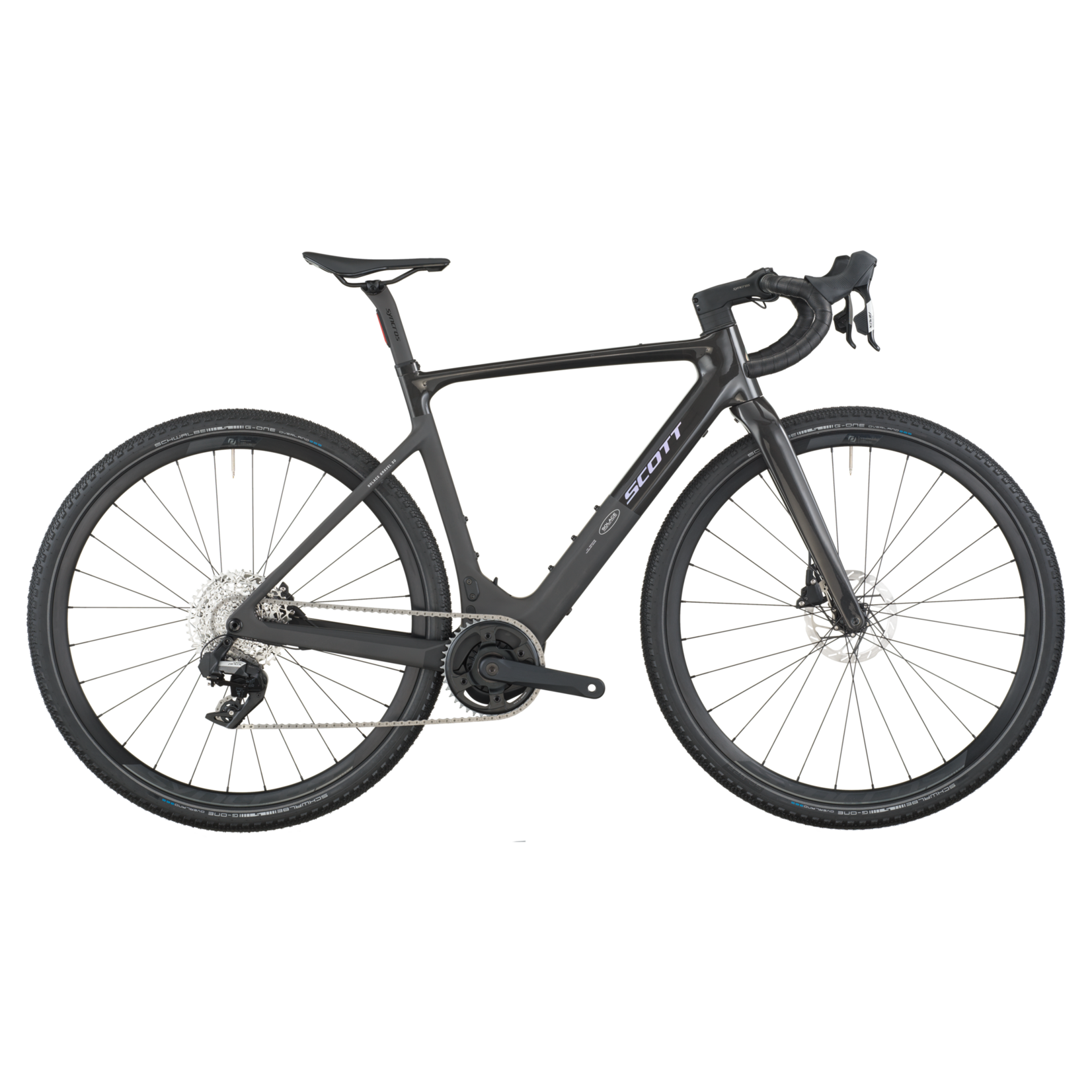

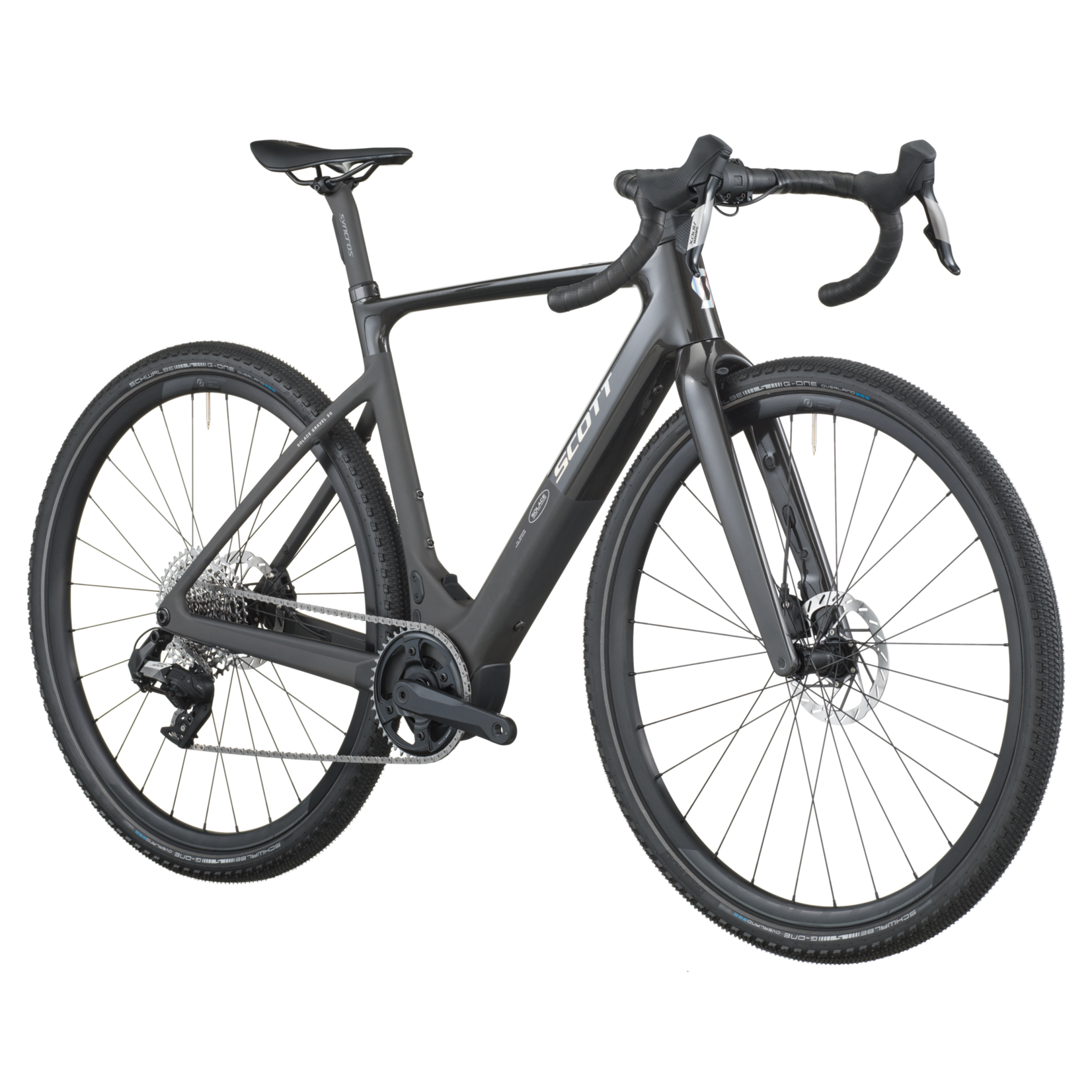

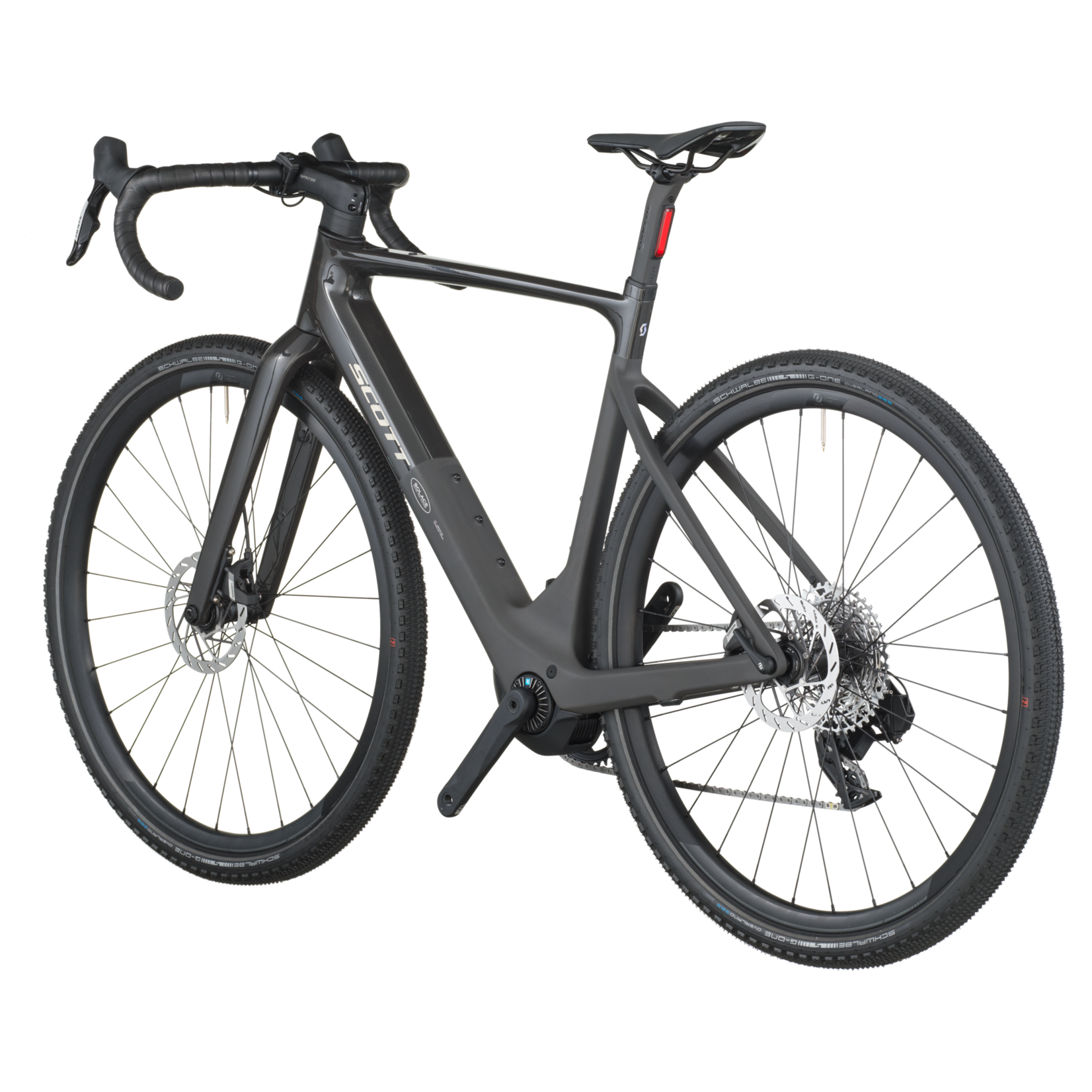

2026 Scott Solace Gravel 30 - CARBON BLACK

The Solace Gravel 30 E-Bike makes saddling up for your best gravel rides easier than ever. With boosted power in an already lightweight, agile, and versatile frame design, you’ll have the confidence and stamina to explore further.

The new TQ HPR60 motor unit is updated from its predecessor, which delivers 60Nm of torque for a 20% boost in performance your legs will appreciate when mashing up the steepest grades.
Controlling all the torque into forward propulsion are 50mm Schwalbe G-One Overland tires that provide critical traction on high-slip slopes and cushion to roll over rough terrain when you’re going flat out with Solace’s new powerband.

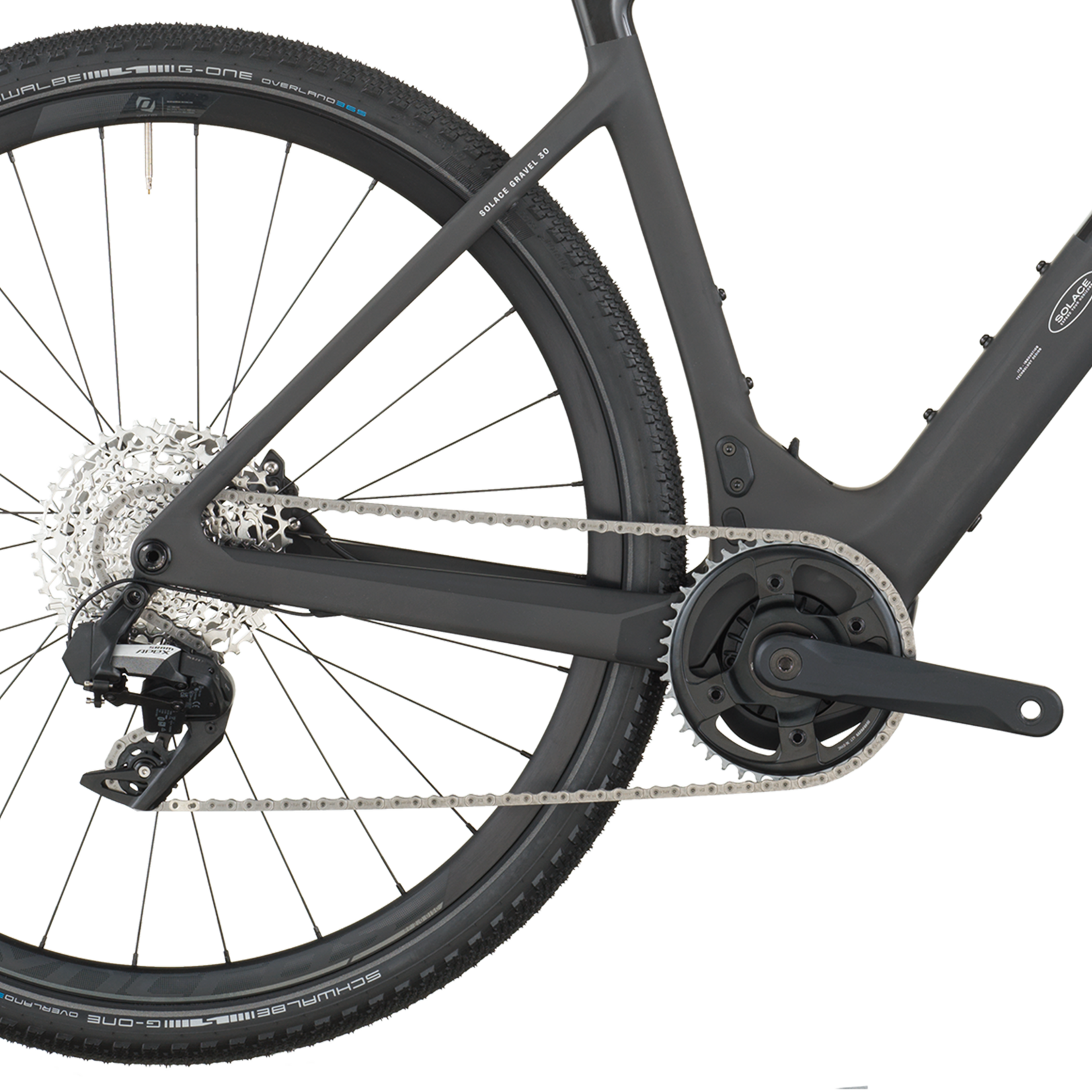

This Solace gets SRAM’s Apex XPLR AX 12-speed groupset that delivers performance-focused shifting and the gearing range premium drivetrains without the steep buy-in. It’s the perfect setup if you’re looking to get into gravel on your first E-Bike.

Frame Solace Gravel Disc HMX, Endurance geometry, Syncros Cable Integration System, TQ HPR60, UDH Interface, Range Extender Ready

Fork Solace Gravel HMF Flatmount Disc1 1/4"-1 1/2" Eccentric Carbon steerer

Drive Unit TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh - US: 28mph

Battery TQ Internal 360Wh

Display TQ HPR 60, Bluetooth, ANT+, AXS, Dedicated Smartphone app

Charger TQ AC 90-264V 2A

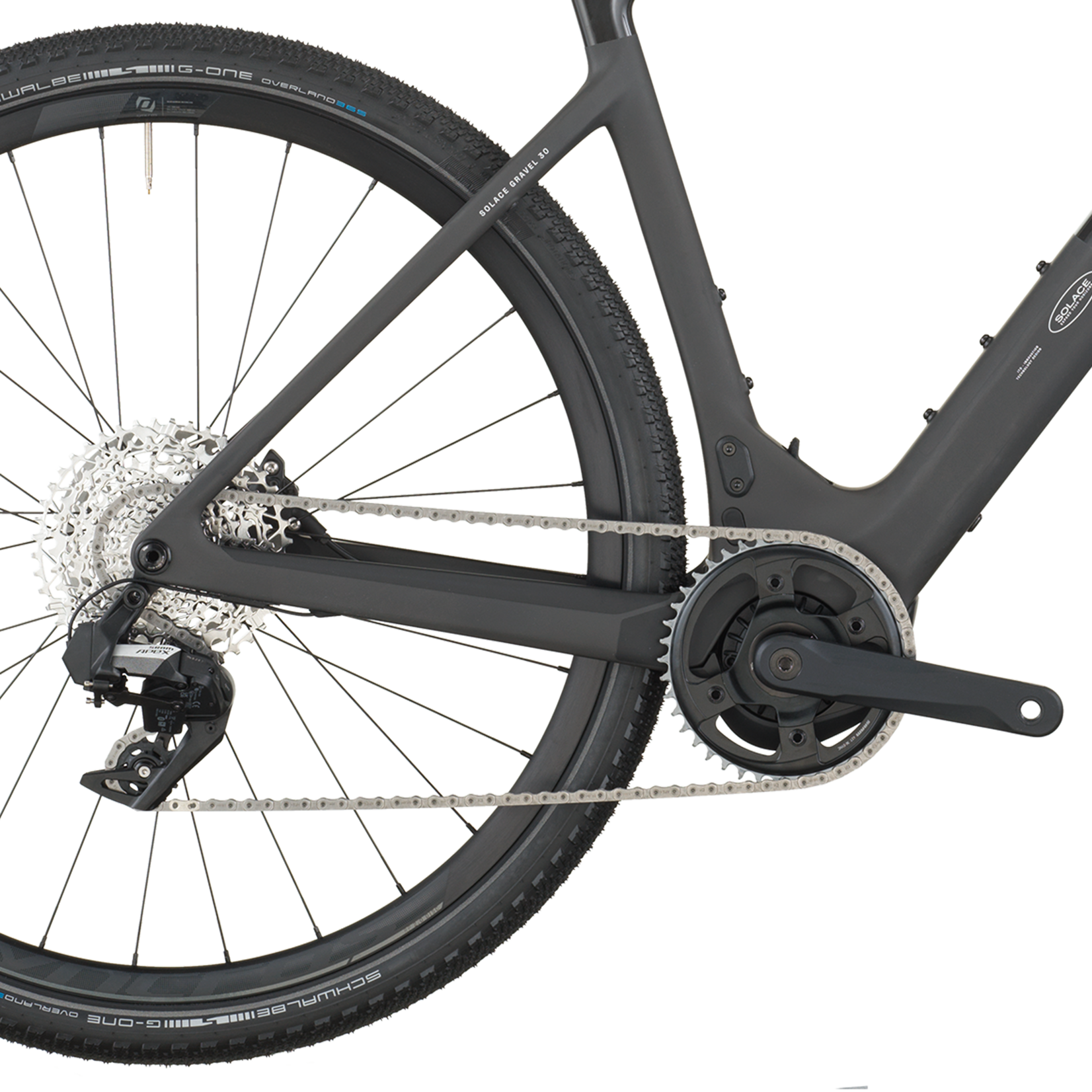

Rear Derailleur SRAM APEX XPLR eTap AXS, 12 Speed

Shifters SRAM APEX AXS HRD Shift-Brake System

Crankset FSA eBike Alloy CK-746

Chainring SRAM X-SYNC42T 107 BCD

Chain SRAM APEX

Cassette SRAM XPLR PG1231, 11-44

Brakes SRAM APEX eTap AXS HRD Shift-Brake System, Flatmount

Rotor SRAM HS2 rotor 160/F and 160/R

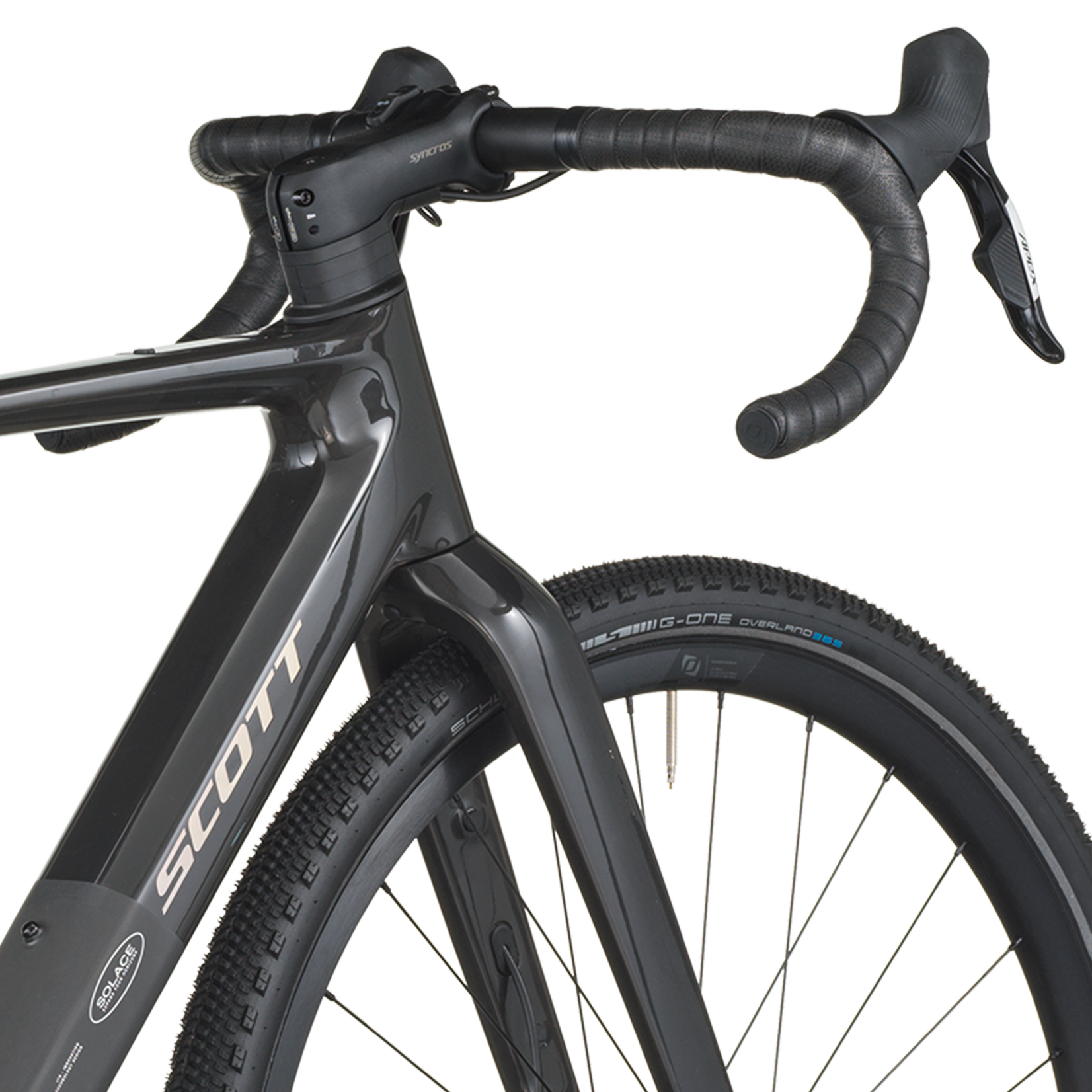

Handlebar Syncros Creston 2.0 XAlloy 31.8mm

H'stem Syncros RR-2.5 1 1/4", four Bolt 31.8mm

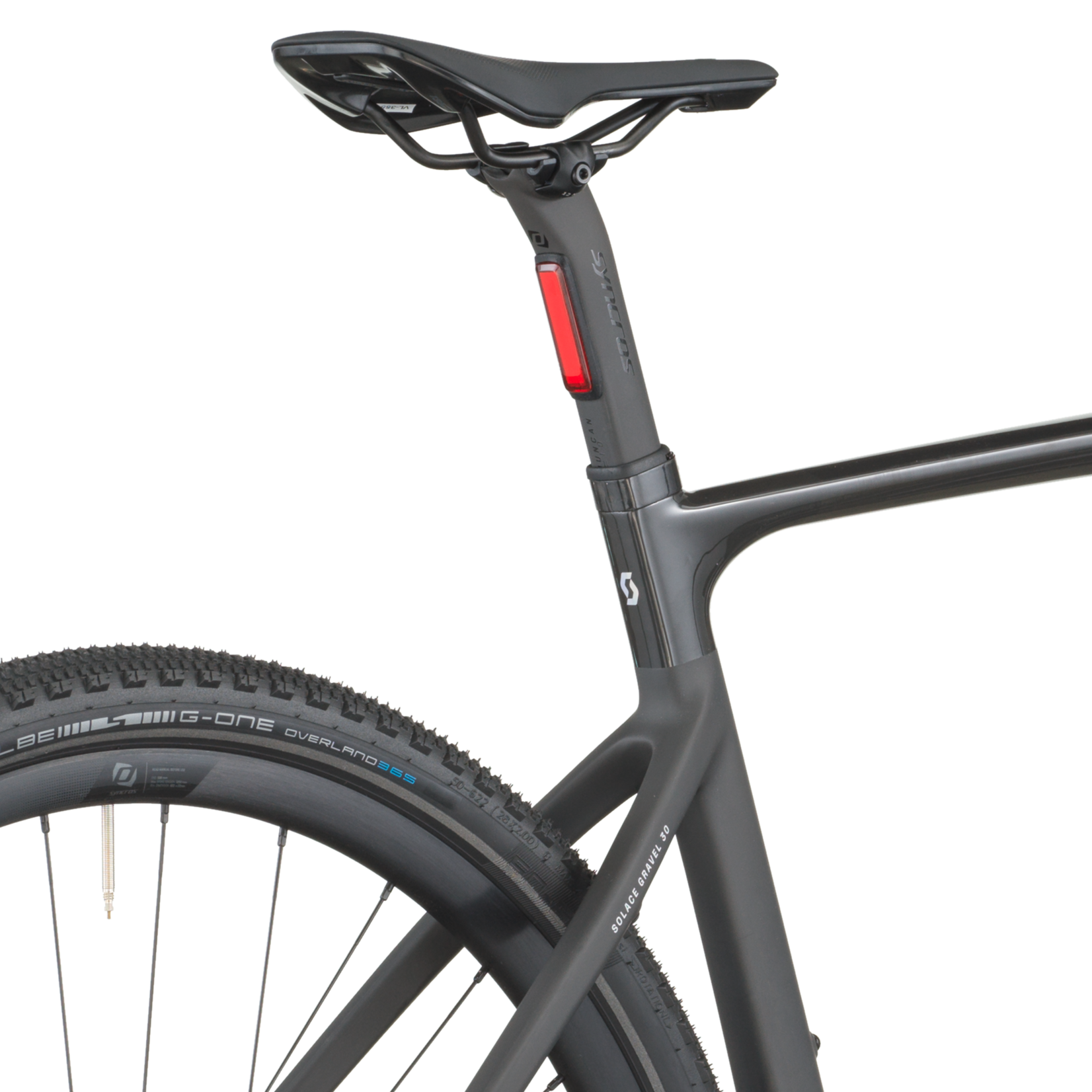

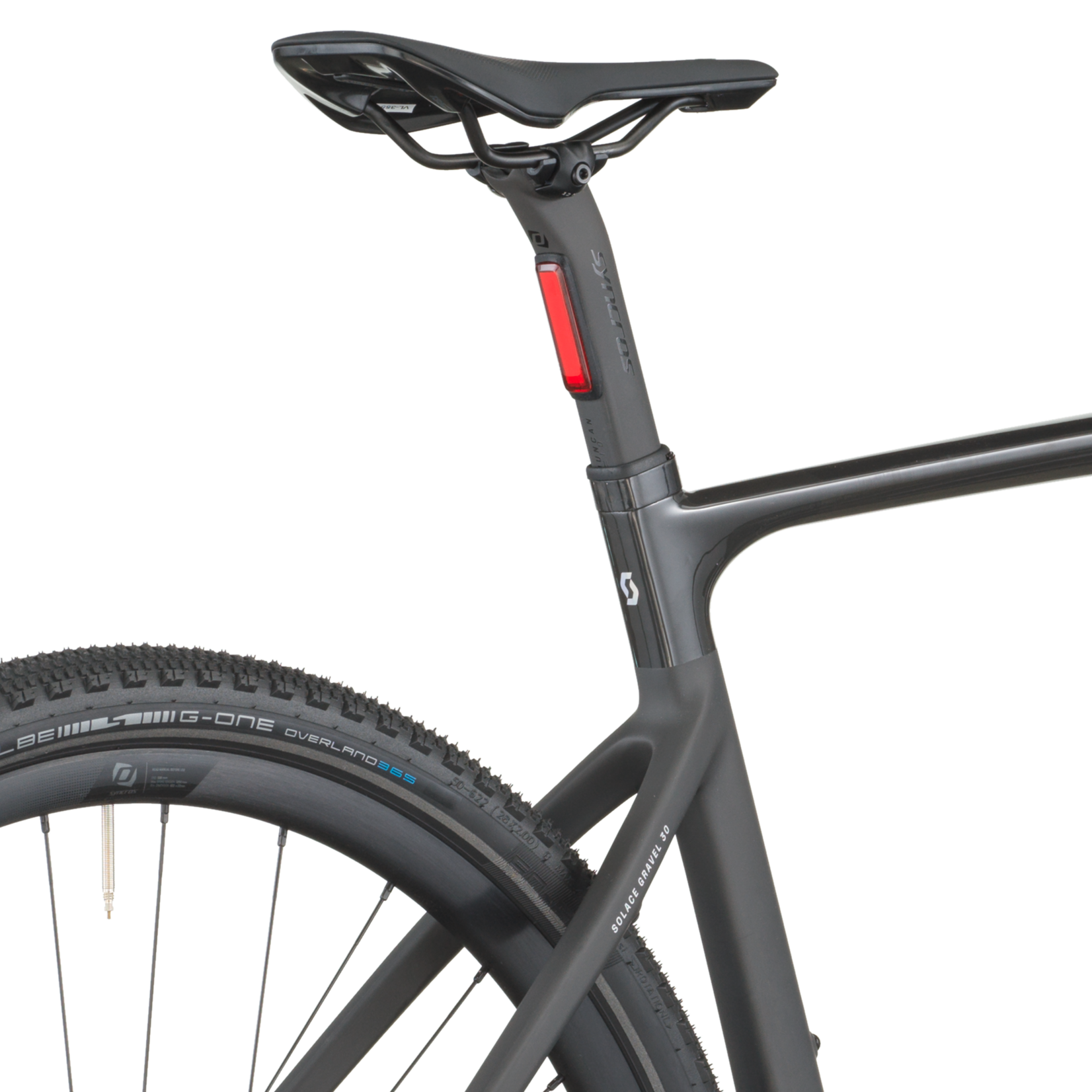

Seatpost Syncros Duncan 1.0 iL D-shape

Seat Syncros Tofino Regular 2.0 Cutout

Headset Acros AIF-1112

Wheelset Syncros Capital 2.0 Disc28 Front 12x100mmTA /28 Rear 12x142mmTASyncros Axle w/Removable Lever with Tool

Front Tire Schwalbe G-One Overland 365 Perf, 700x50C

Rear Tire Schwalbe G-One Overland 365 Perf, 700x50C

Lights Syncros Campbell iL rear

Approx weight in KG14.3

Approx weight in LBS31.53

Max. System Weight 120kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.

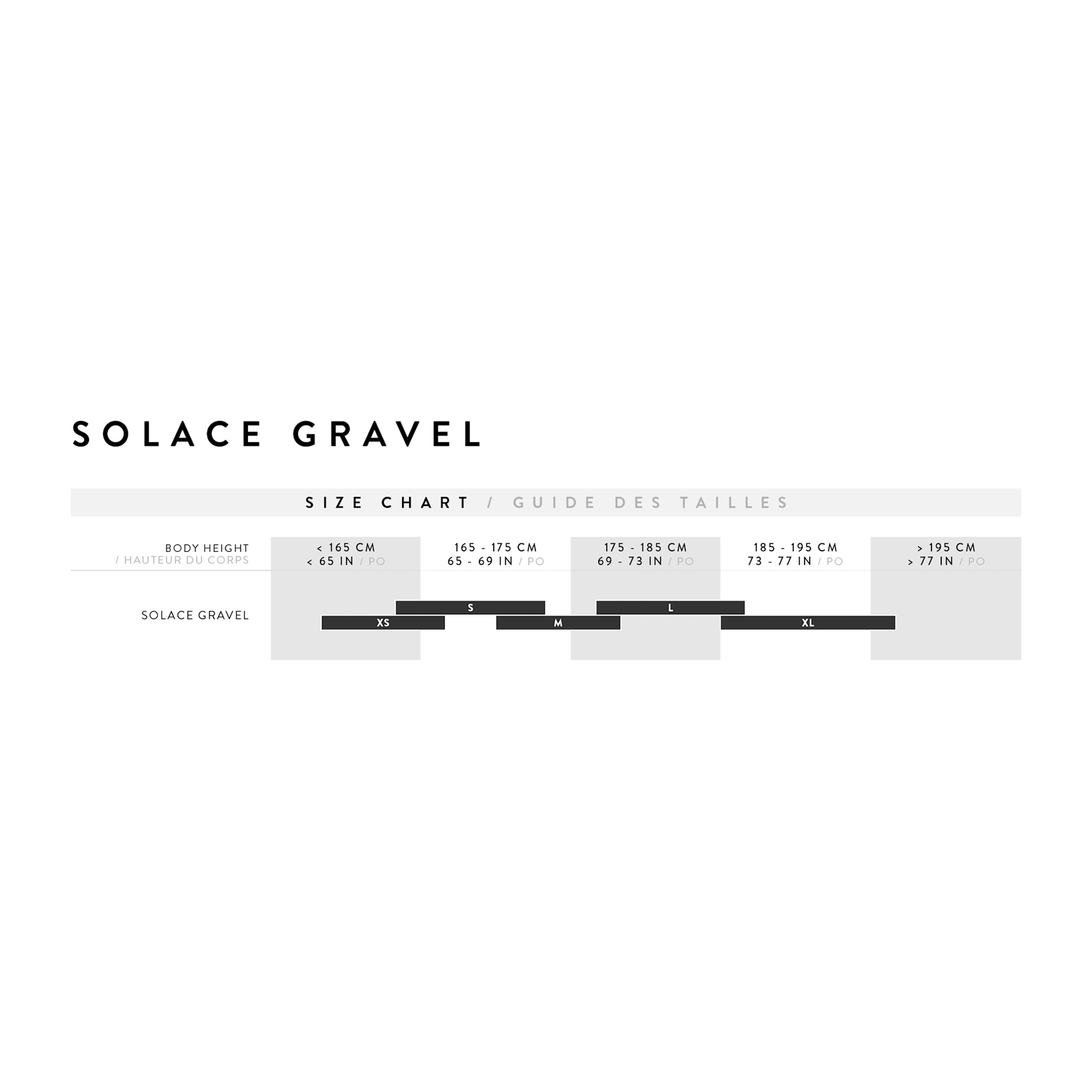

		XS/49	S/52	M/54	L/56	XL/58
A	head tube angle / angle tube de direction	69.5 °	70.0 °	71.0 °	71.0 °	71.0 °
B	head tube length / hauteur tube de direction	85.0 mm	110.0 mm	128.0 mm	154.0 mm	175.0 mm
C	top tube horizontal / longueur horizontale tube supérieur	518.0 mm	534.2 mm	554.5 mm	578.4 mm	592.5 mm
D	standover height / hauteur entre-jambes	759.0 mm	785.0 mm	803.0 mm	824.0 mm	841.0 mm
E	BB offset / deport axe de pédalier	76.0 mm	76.0 mm	76.0 mm	76.0 mm	76.0 mm
F	BB height / hauteur axe de pédalier	294.0 mm	294.0 mm	294.0 mm	294.0 mm	294.0 mm
G	wheel base / entraxe roues	1,021.5 mm	1,030.1 mm	1,036.8 mm	1,056.2 mm	1,071.1 mm
H	BB center to toptube center / dist. boitier - milieu tube supérieur
I	BB center to top of seattube / dist. boitier - sommet tube de selle	477.0 mm	507.0 mm	527.0 mm	547.0 mm	567.0 mm
J	seat angle / angle tube de selle	74.5 °	74.0 °	73.5 °	73.0 °	73.0 °
K	chainstay / longueur des bases	435.0 mm	435.0 mm	435.0 mm	435.0 mm	435.0 mm
L	reach / reach	374.0 mm	378.0 mm	387.0 mm	398.0 mm	406.0 mm
M	stack / stack	519.3 mm	544.7 mm	565.6 mm	590.2 mm	610.0 mm
N	stem length / longueur potence	80.0 mm	90.0 mm	100.0 mm	100.0 mm	110.0 mm
0	trail / chasse au sol	80.8 mm	77.5 mm	70.7 mm	70.7 mm	70.7 mm
