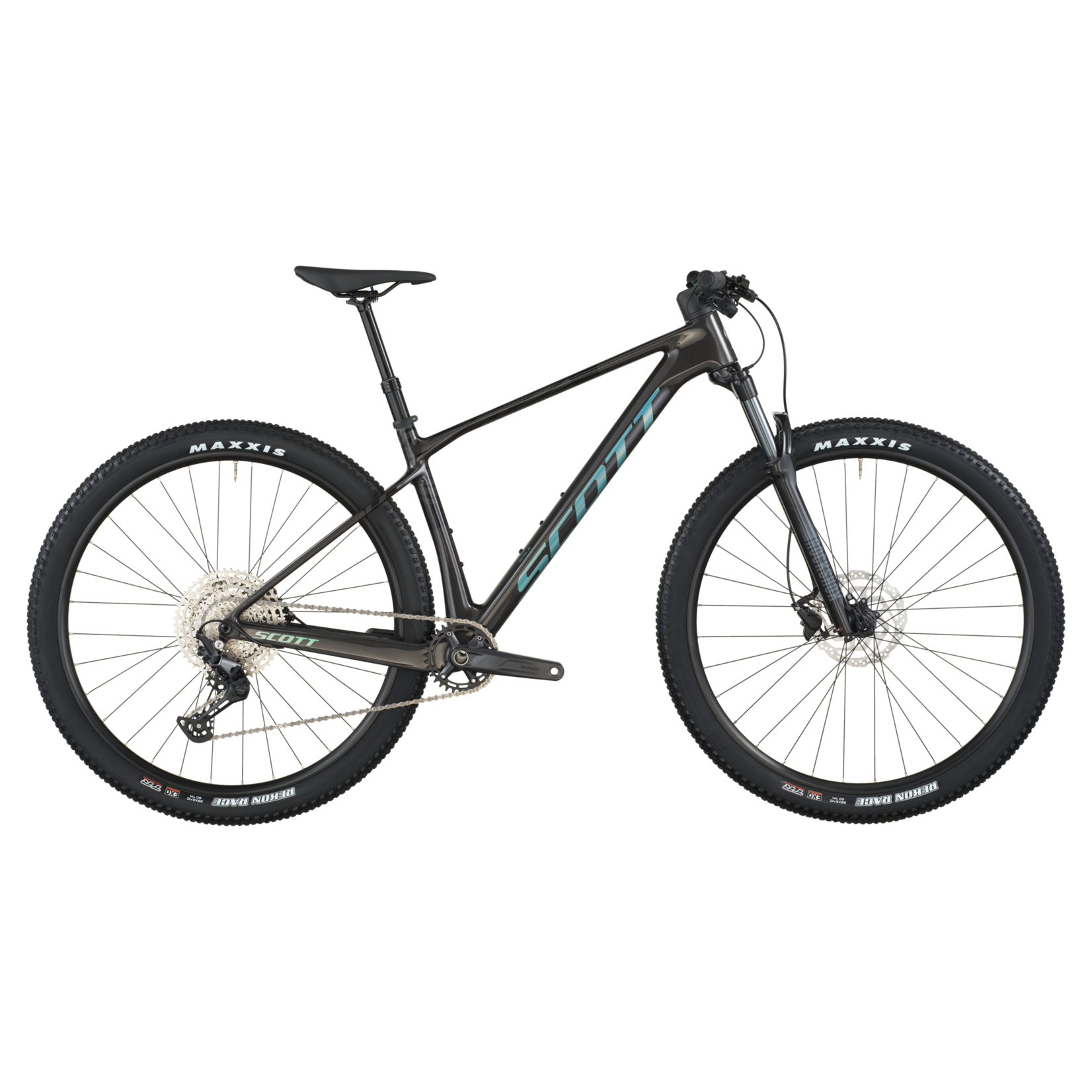

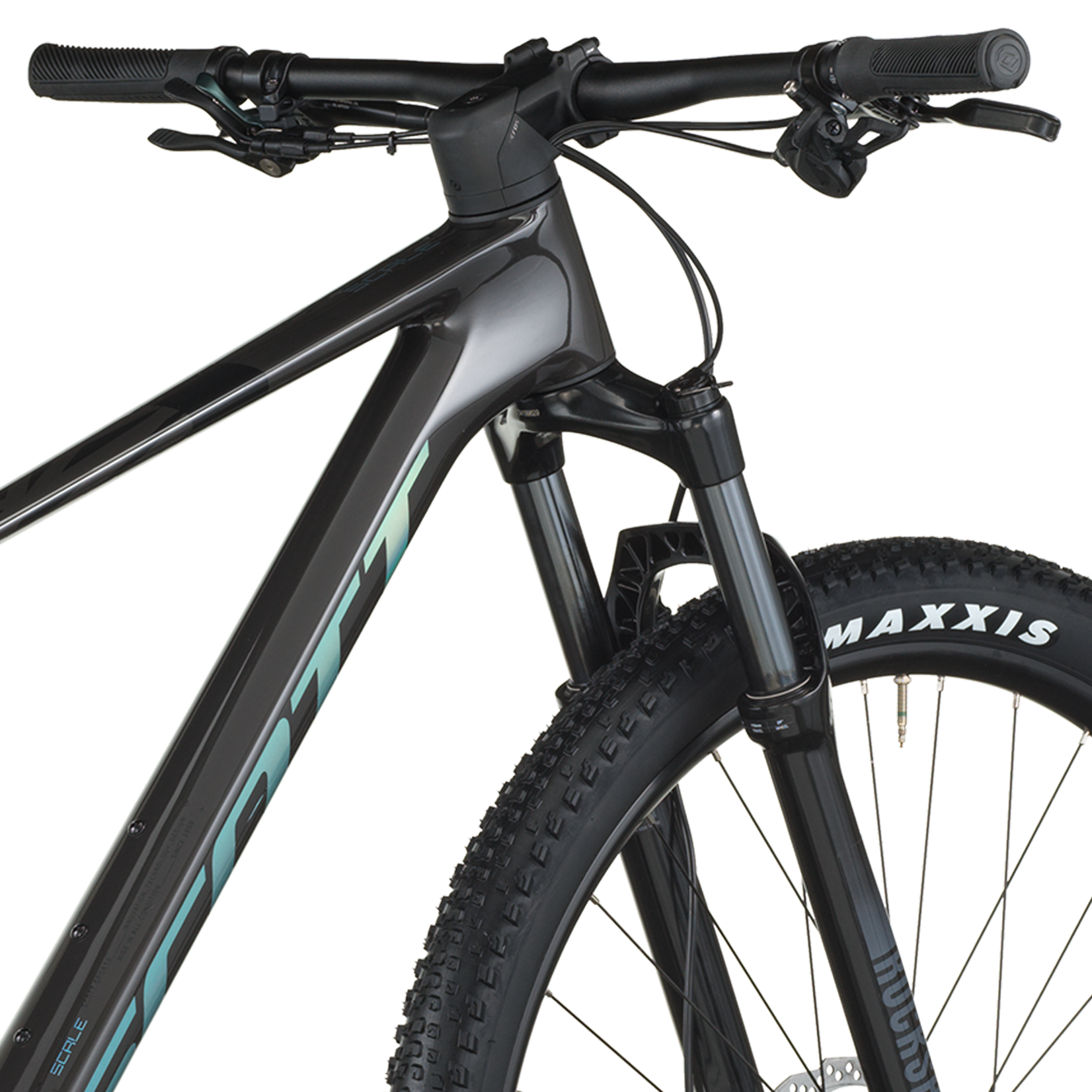

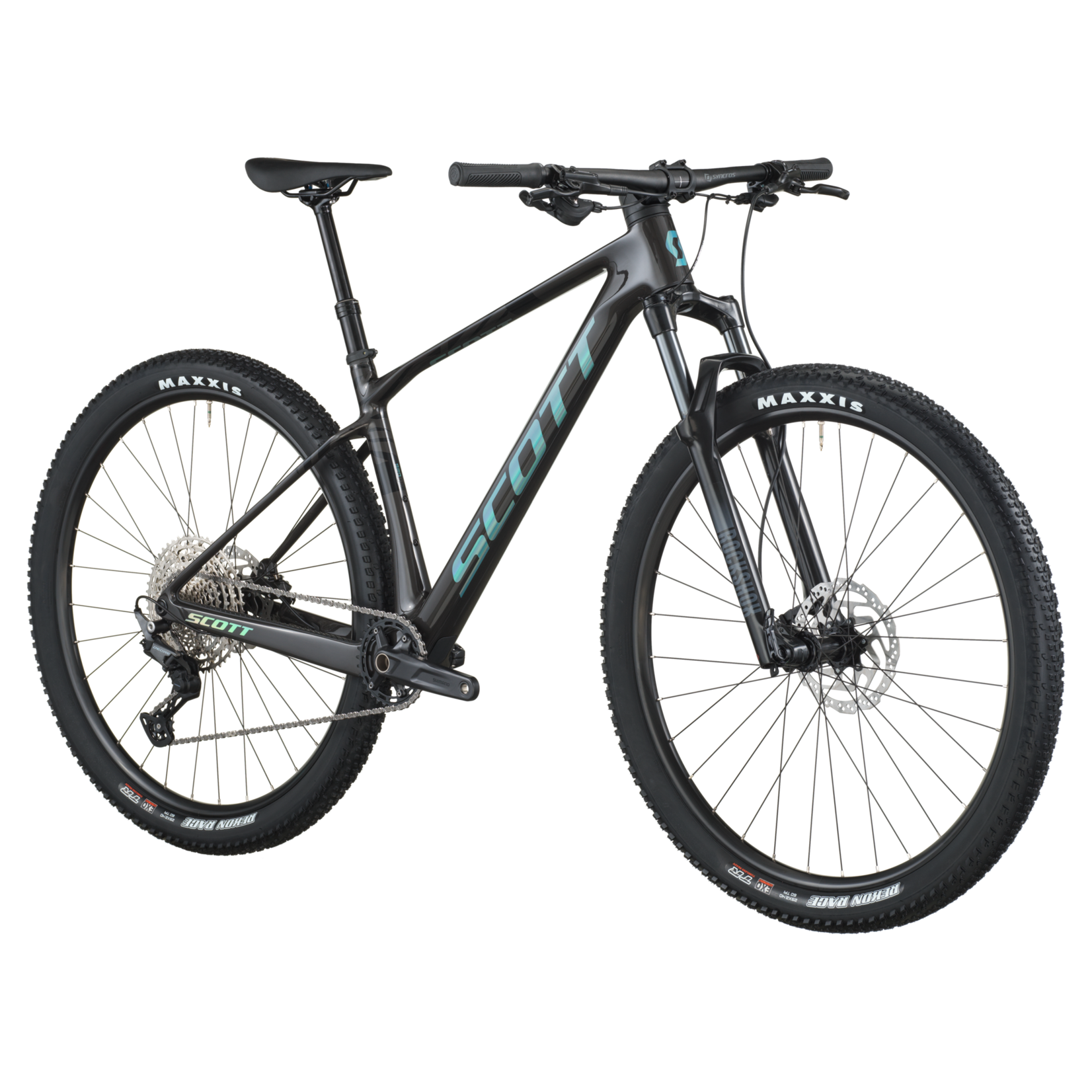

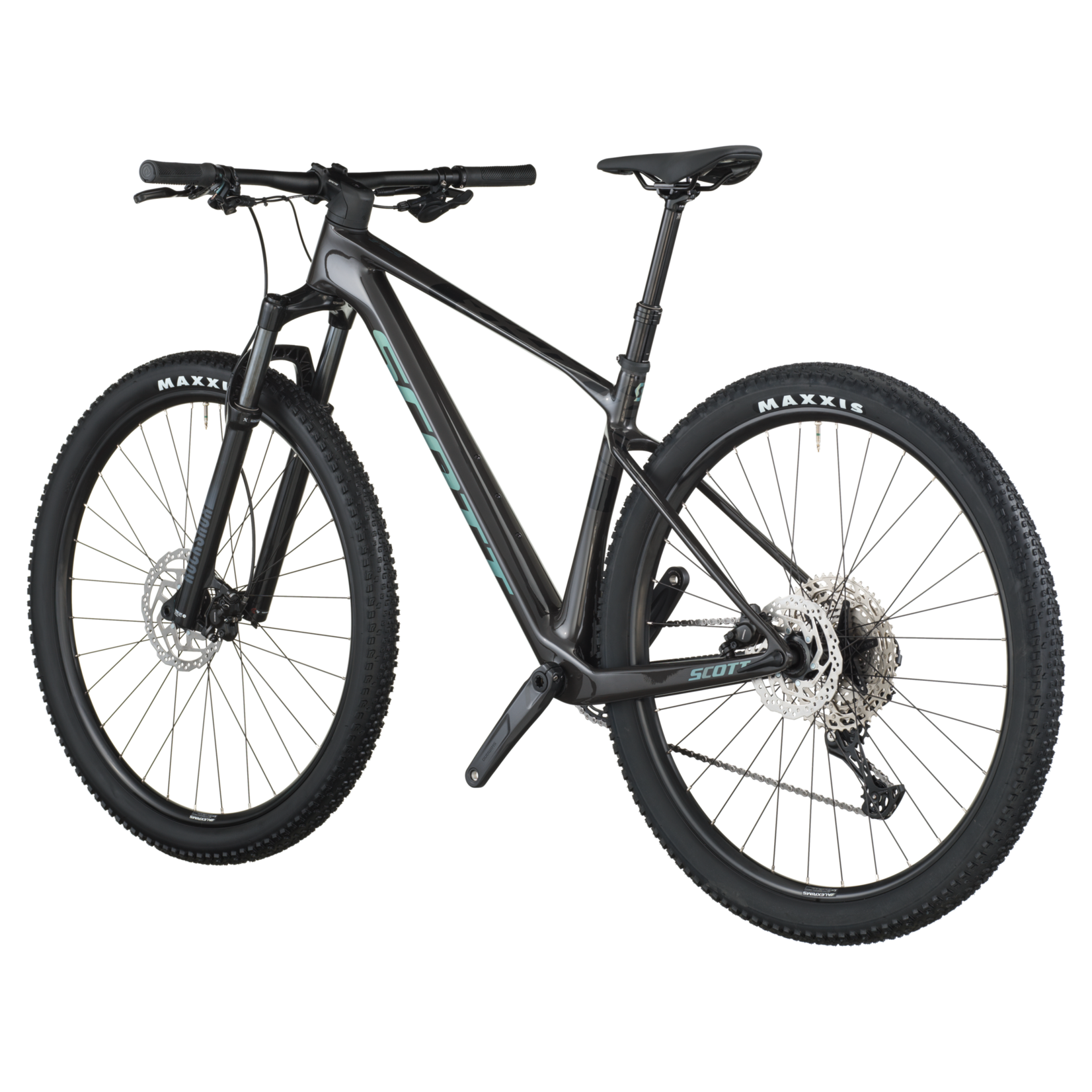

2026 Scott Scale 920 - CARBON BLACK

Frame Scale Carbon HMFAdjustable head angle, Syncros Cable Integration System Advanced Shock & Standing Damping SystemBB92, UDH Interface, 12x148mm with 55mm Chainline

Fork RockShox Judy Silver TK Solo Air15x110mm QR axle, 51mm offset, Tapered Steerer Reb. Adj., Lockout, 110mm travel

Remote Syste mSCOTT RideLoc TechnologySuspension & Dropper Remote2 Suspension modes

Rear Derailleur Shimano Deore RD-M6100 SGS Shadow Plus, 12 Speed

ShiftersS himano Deore SL-M6100-R, Rapidfire Plus

Crankset Shimano FC-MT512-155mm CL, 32T

BB-Set Shimano BB-MT500, shell 41x92mm

Chain Shimano CN-M6100

Cassette Shimano Deore CS-M6100-12, 10-51 T

Brakes Shimano MT200 Disc Brake

Rotor Shimano SM-RT10 CL, 180/F and 160/R

Handlebar Syncros Alloy 6061T shape Flat, 9°, 740mmSyncros Performance XC lock-on grips

H'stem Syncros DC 3.0Syncros Cable Integration System0° rise, 6061 Alloy, 31.8mm, 1 1/8"

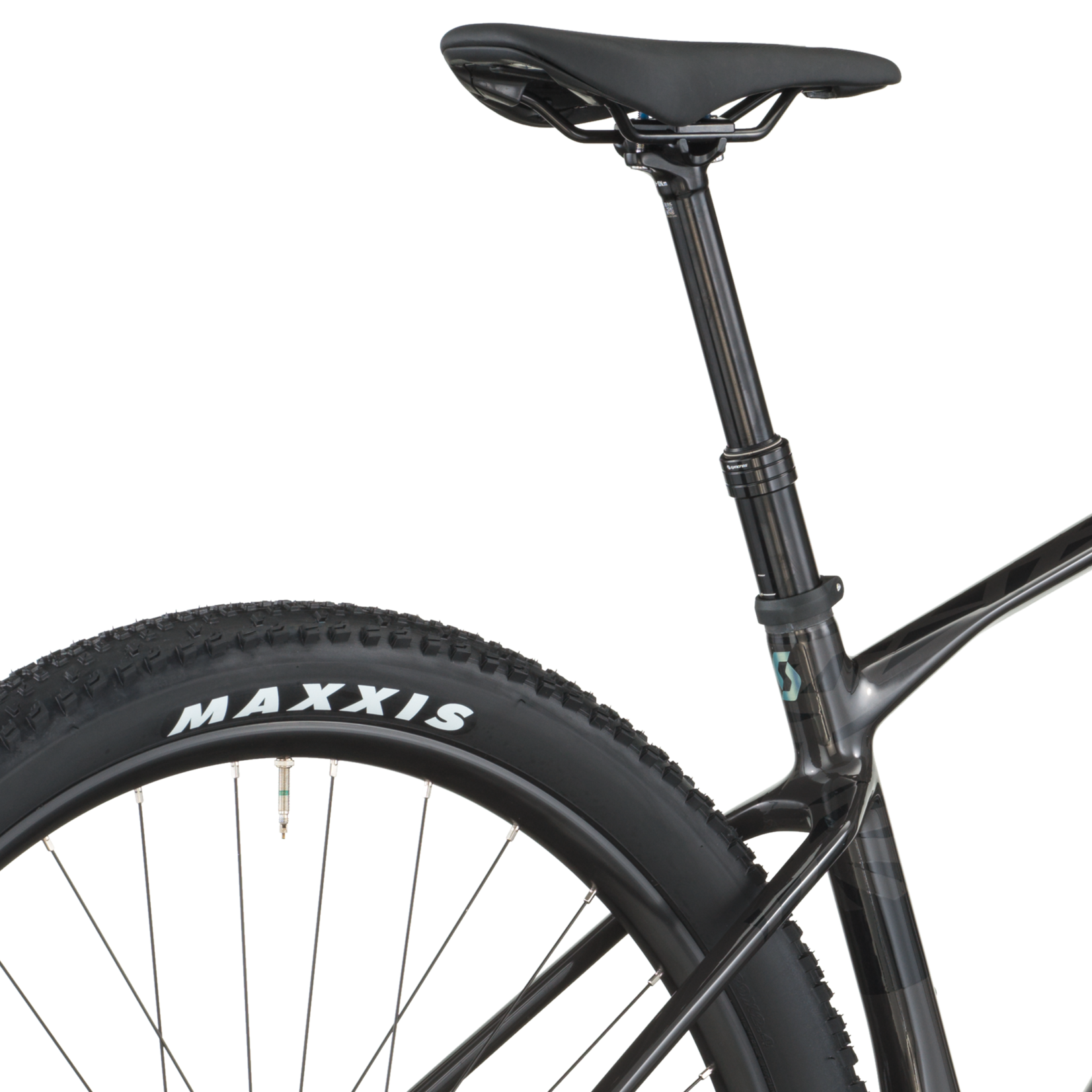

Seatpost Syncros Duncan Dropper, 31.6mmS size 100mm, M size 130mm, L &XL size 150mm

Seat Syncros Belcarra Regular 2.5

Headset Syncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB

Hub (Front)Formula CL-811, 15x110mm

Hub (Rear)Formula CL-548M, 12x148mm, Micro Spline

Spokes Stainless Black 15G, 1.8mm

Rims Alex X-25/ 32H, 25mmTubeless ready

Front Tire Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready

Rear Tire Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready

Approx weight in KG12.9 (Tubless setup)

Approx weight in LBS28.44 (Tubless setup)

Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.

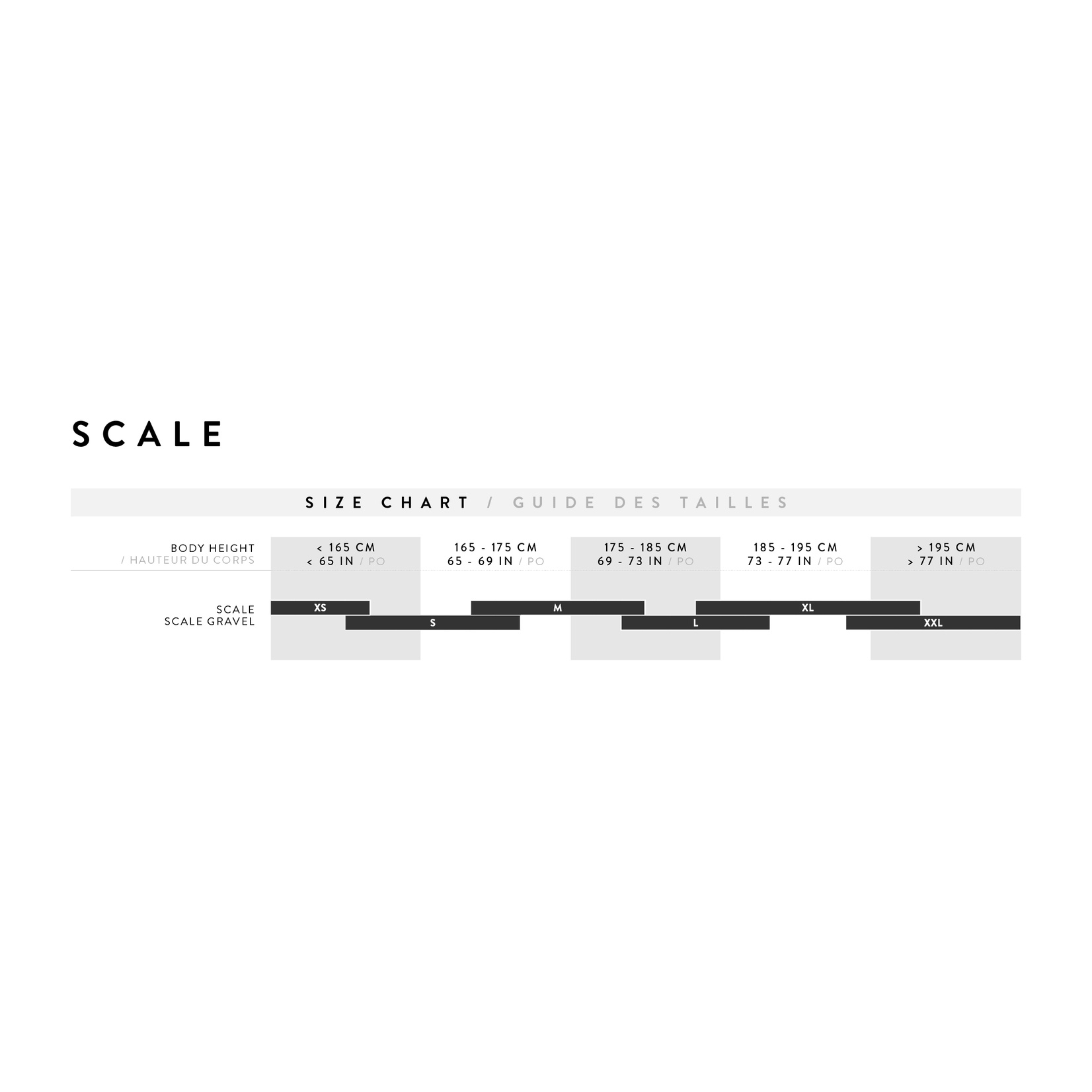

		S	M	L	XL
A	head tube angle / angle tube de direction	67.9 °	67.9 °	67.9 °	67.9 °
B	head tube length / hauteur tube de direction	90.0 mm	95.0 mm	110.0 mm	120.0 mm
C	top tube horizontal / longueur horizontale tube supérieur	575.0 mm	600.2 mm	626.0 mm	656.5 mm
D	standover height / hauteur entre-jambes	752.0 mm	781.0 mm	800.0 mm	835.1 mm
E	BB offset / deport axe de pédalier	-62.0 mm	-62.0 mm	-62.0 mm	-62.0 mm
F	BB height / hauteur axe de pédalier	313.0 mm	313.0 mm	313.0 mm	313.0 mm
G	wheel base / entraxe roues	1,105.4 mm	1,131.1 mm	1,158.0 mm	1,189.4 mm
H	BB center to toptube center / dist. boitier - milieu tube supérieur
I	BB center to top of seattube / dist. boitier - sommet tube de selle	390.0 mm	440.0 mm	480.0 mm	530.0 mm
J	seat angle / angle tube de selle	75.4 °	75.4 °	75.3 °	75.3 °
K	chainstay / longueur des bases	425.0 mm	425.0 mm	425.0 mm	425.0 mm
L	reach / reach	418.5 mm	442.3 mm	463.6 mm	491.2 mm
M	stack / stack	600.3 mm	604.9 mm	618.9 mm	628.1 mm
N	stem length / longueur potence	50.0 mm	60.0 mm	70.0 mm	80.0 mm
0	trail / chasse au sol	105.0 mm	105.0 mm	105.0 mm	105.0 mm
P	fork length / longueur fourche	506.0 mm	506.0 mm	506.0 mm	506.0 mm
Q	Maximum Seatpost Insertion / Insertion maximale de la tige de selle	160.0 mm	210.0 mm	250.0 mm	300.0 mm
R	Crank Length / longueur de manivelle	170.0 mm	170.0 mm	175.0 mm	175.0 mm
